Safari Van 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Motor
>>
Front Passenger Connector
Front Passenger Connector

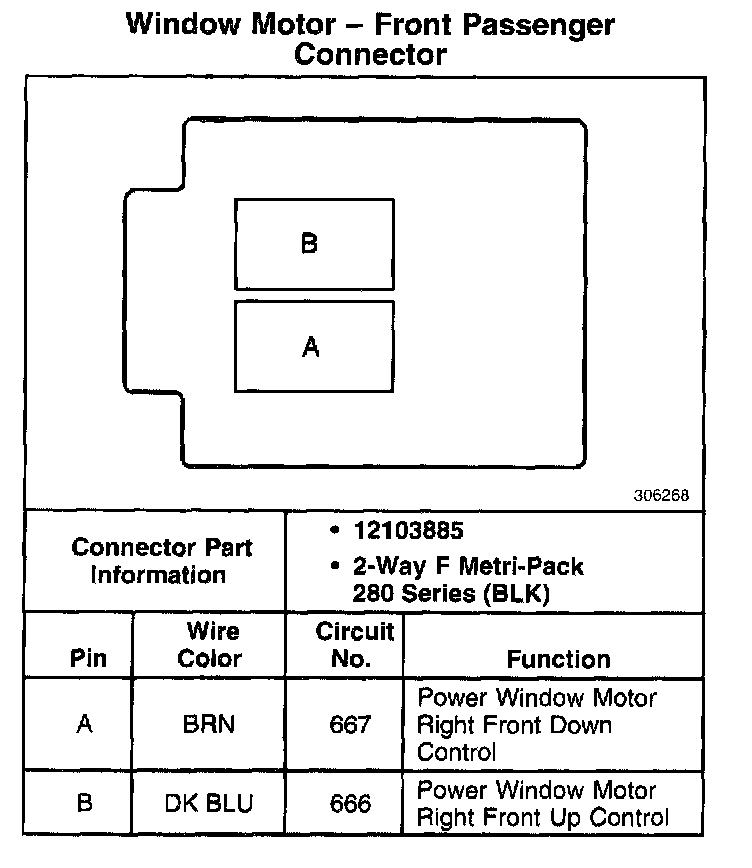

Window Motor - Front Passenger Connector:
