GMC
>>
2001
>>
Safari Van 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Motor
>>
Driver Connector
Driver Connector

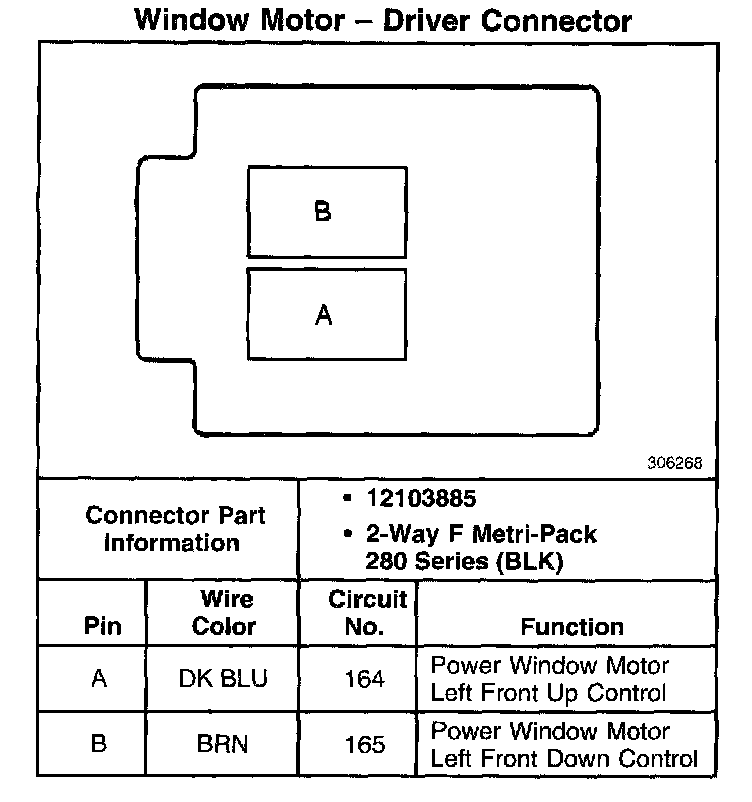

Window Motor - Driver Connector:
