LF (VE1)

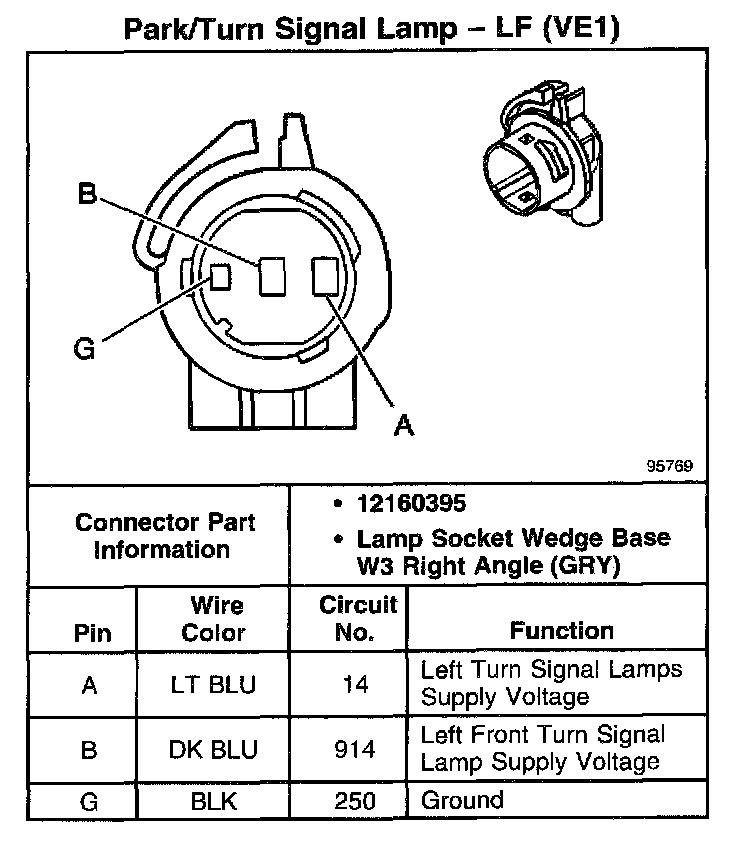

Park/Turn Signal Lamp - LF (VE1):





For a description of the RPO Code(s) shown in this article/images refer to the RPO Code List found at Vehicle/Application ID RPO Codes
