C314 (Engine to Wheel Speed Sensor Jumper)
C314 (Engine to Wheel Speed Sensor Jumper)

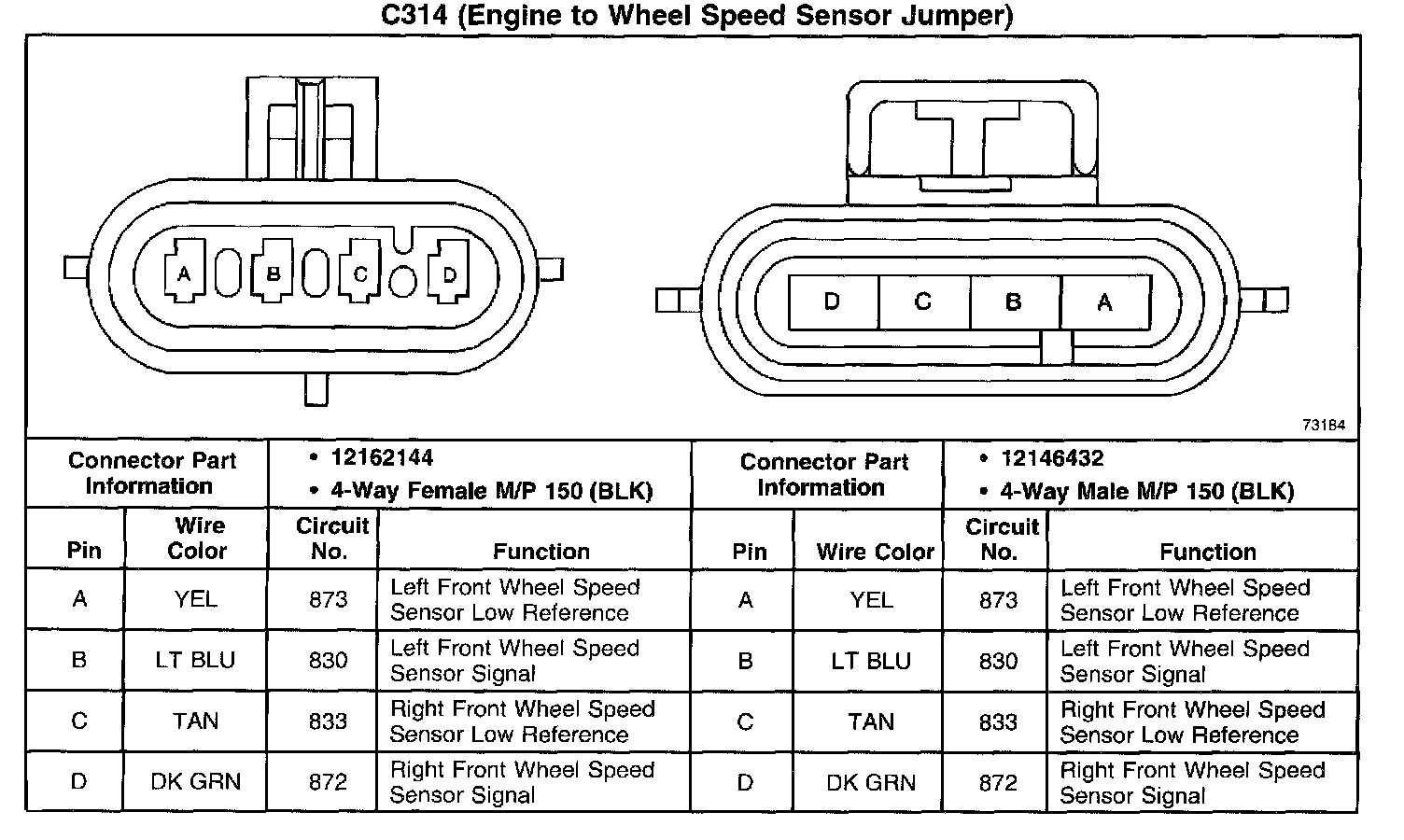

C314 (Engine To Wheel Speed Sensor Jumper):
