C112 (Engine to Brake Fluid Switch Jumper)
C112 (Engine to Brake Fluid Switch Jumper)

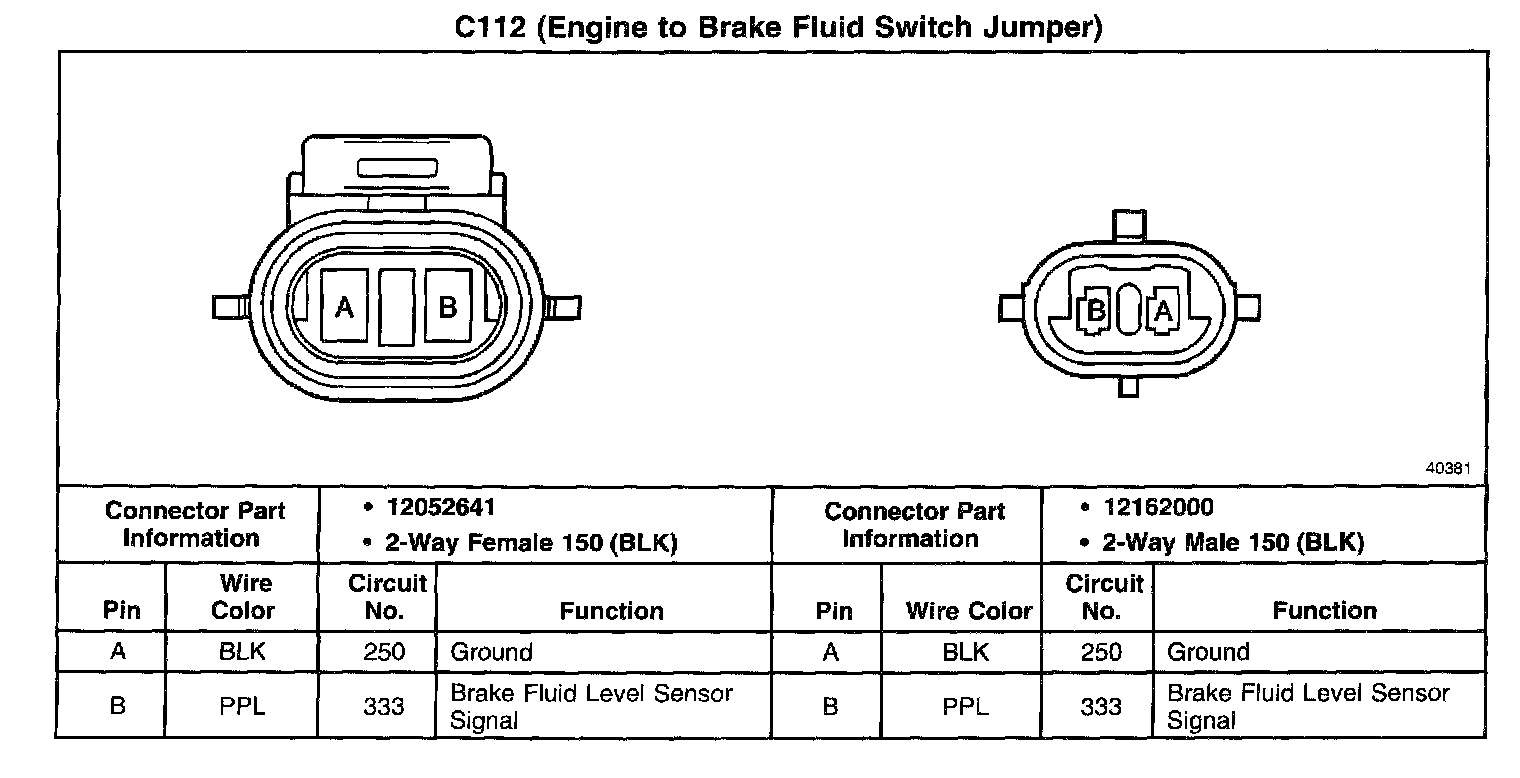

C112 (Engine To Brake Fluid Switch Jumper):
