Home >> GMC >> 2001 >> Safari Van 2WD V6-4.3L VIN W >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> C100 - C199 >> C104 (Engine to Forward Lamp)

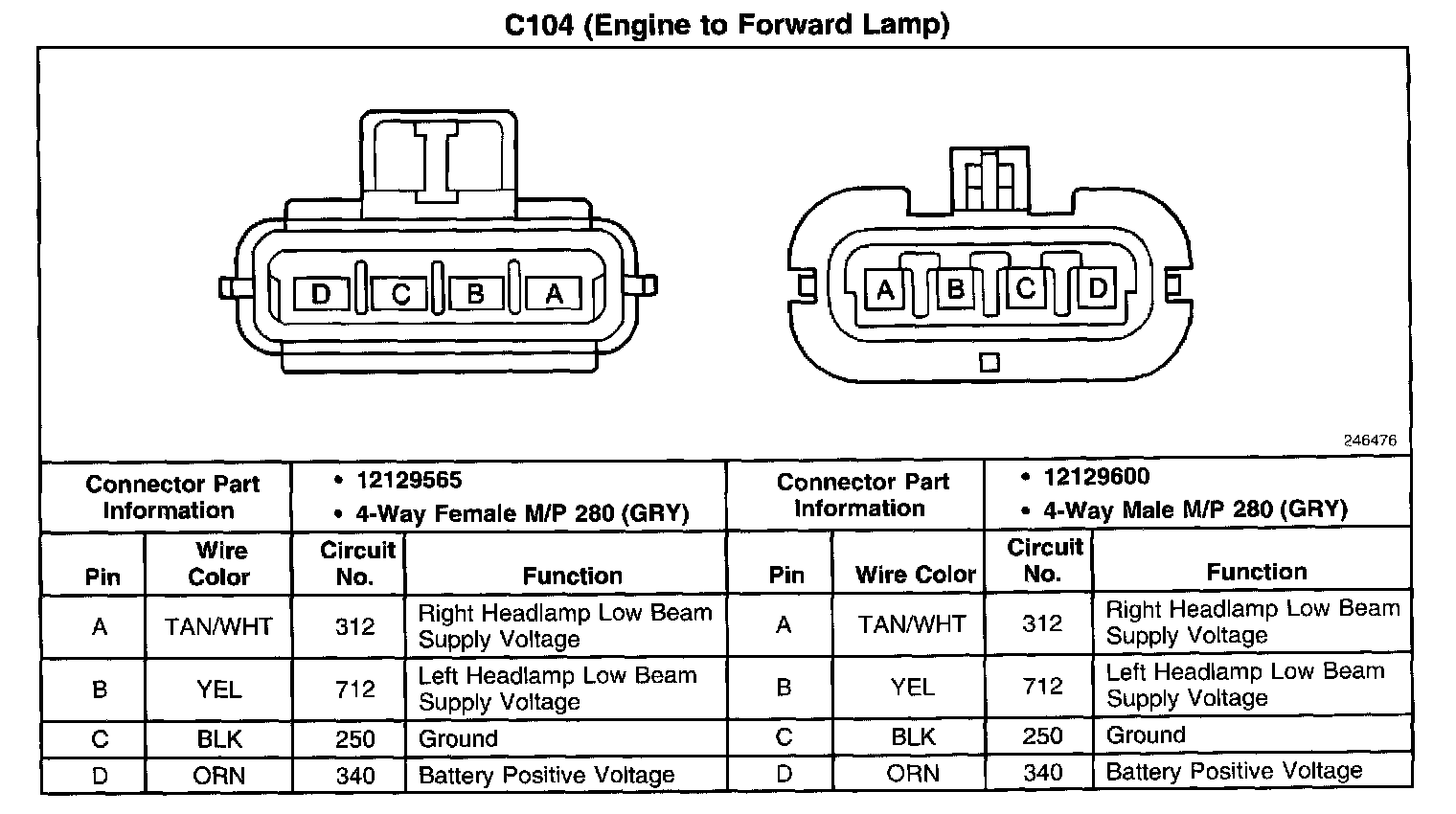

C104 (Engine to Forward Lamp)

C104 (Engine To Forward Lamp):
