Home
>>
GMC
>>
2001
>>
Safari Van 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
Power Mirror Switch
Power Mirror Switch

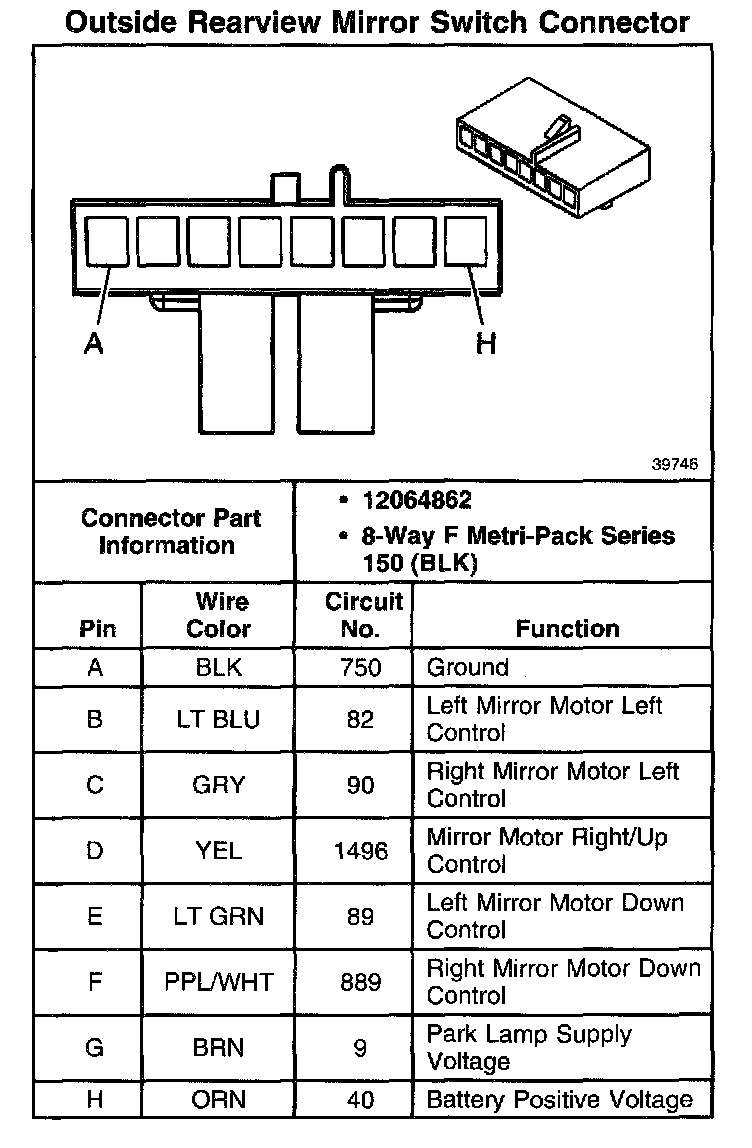

Outside Rearview Mirror Switch Connector:
