Home >> GMC >> 2001 >> Safari Van 2WD V6-4.3L VIN W >> Repair and Diagnosis >> Diagrams >> Connector Views >> Crankshaft Position Sensor

Crankshaft Position Sensor

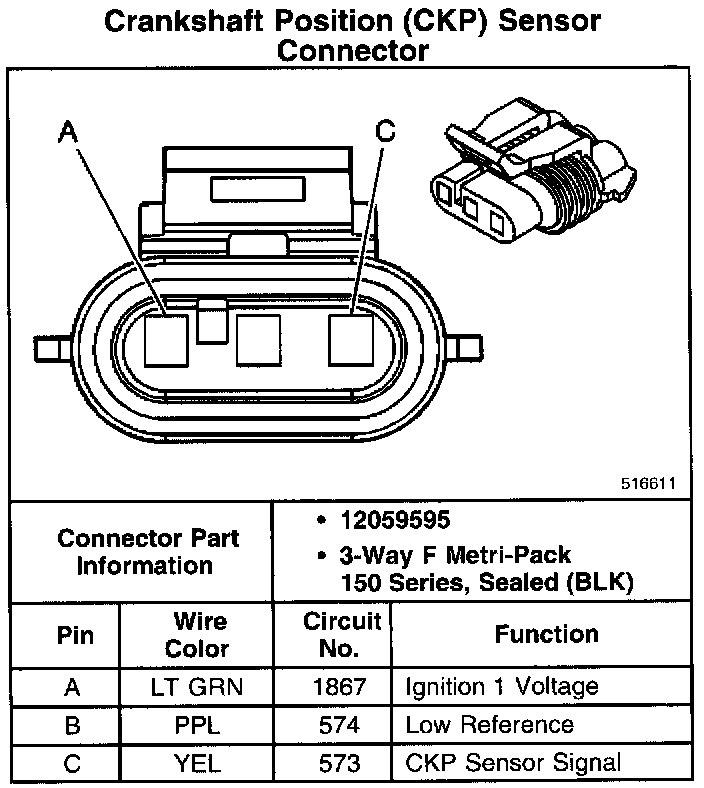

Crankshaft Position (CKP) Sensor Connector:
