Home >> GMC >> 2001 >> Safari Van 2WD V6-4.3L VIN W >> Repair and Diagnosis >> Diagrams >> Connector Views >> Courtesy Lamp >> Glove Box Lamp

Glove Box Lamp

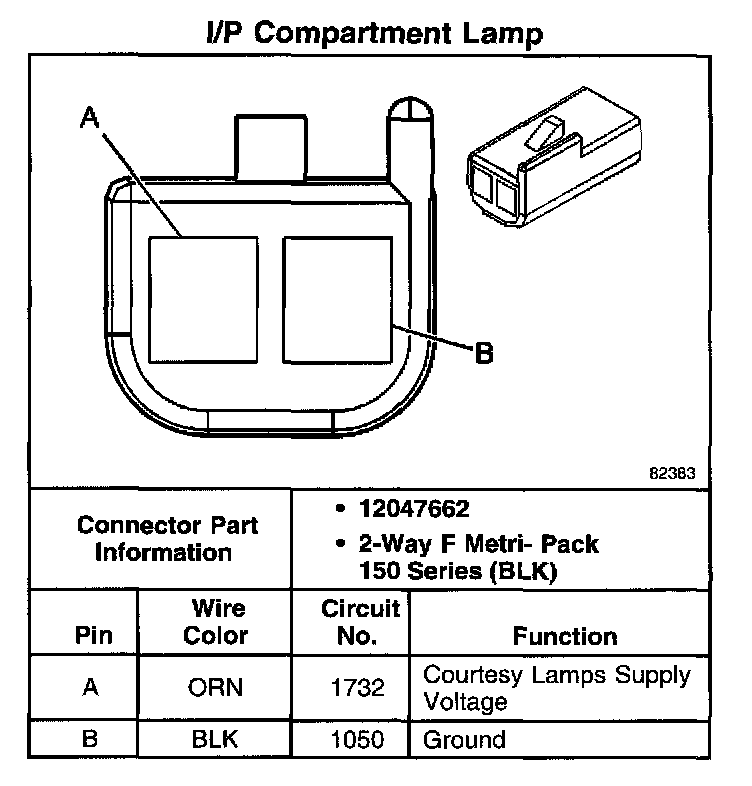

I/P Compartment Lamp:
