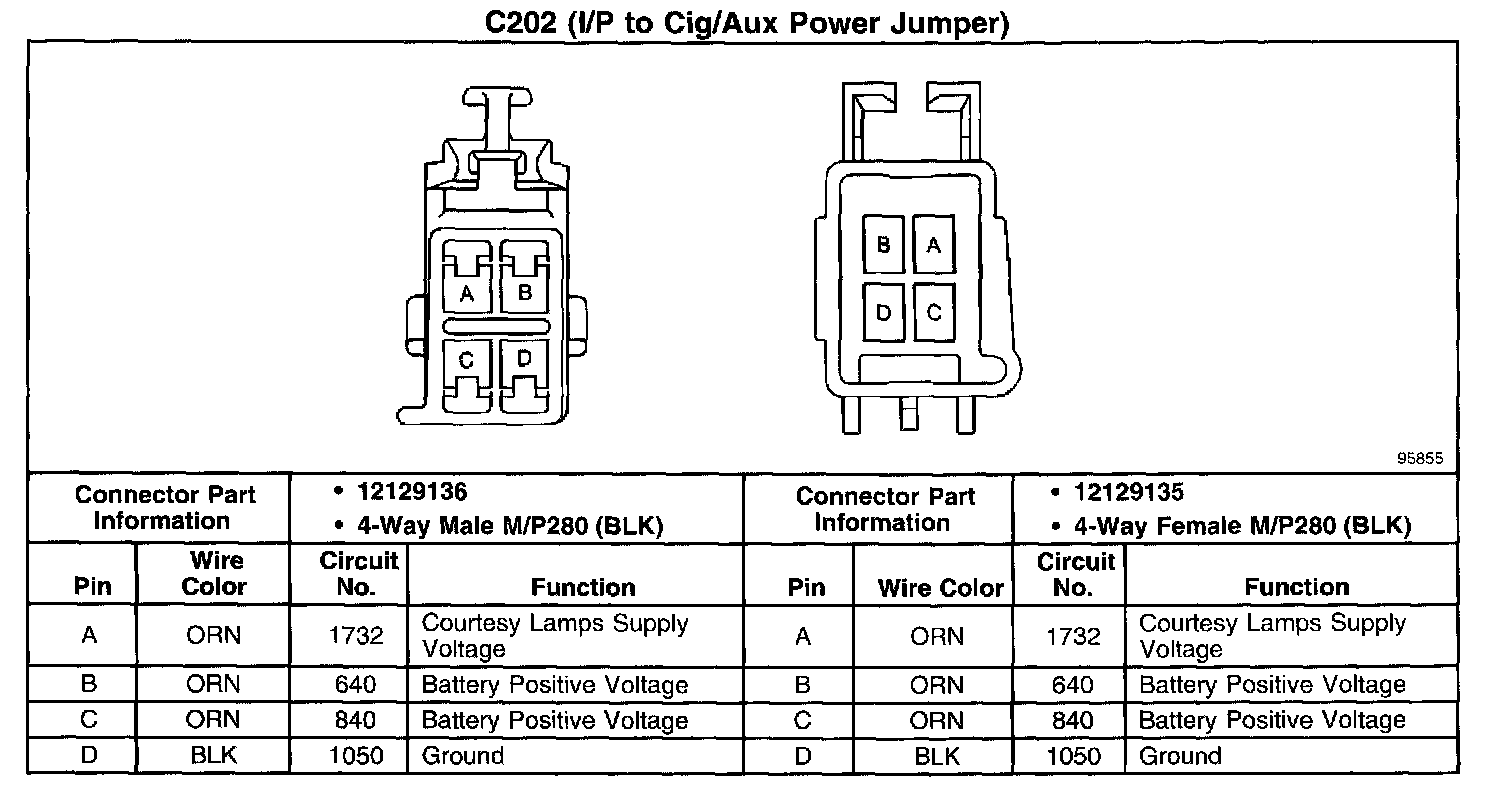

C202 (I/P to Cig/Aux Power Jumper)
C202 (I/P to Cig/Aux Power Jumper)
C202 (I/P To Cig/Aux Power Jumper):
