Home >> GMC >> 2001 >> Safari Van 2WD V6-4.3L VIN W >> Repair and Diagnosis >> Diagrams >> Connector Views >> Backup Lamp >> Right (VE1)

Right (VE1)

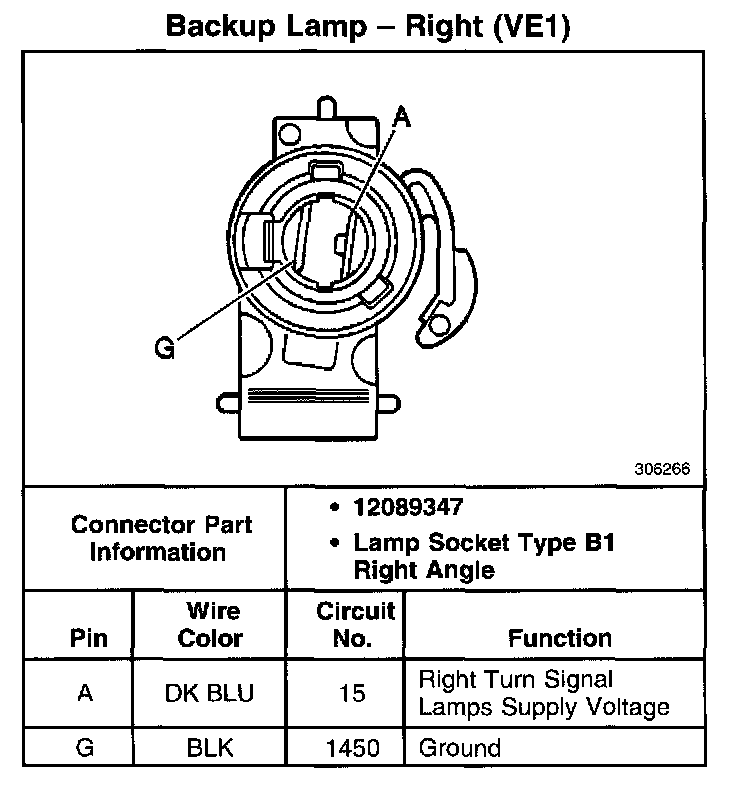

Backup Lamp - Right (VE1):





For a description of the RPO Code(s) shown in this article/images refer to the RPO Code List found at Vehicle/Application ID RPO Codes
