Shift Interlock, A/T

Automatic Transmission Shift Lock Control Connector End Views

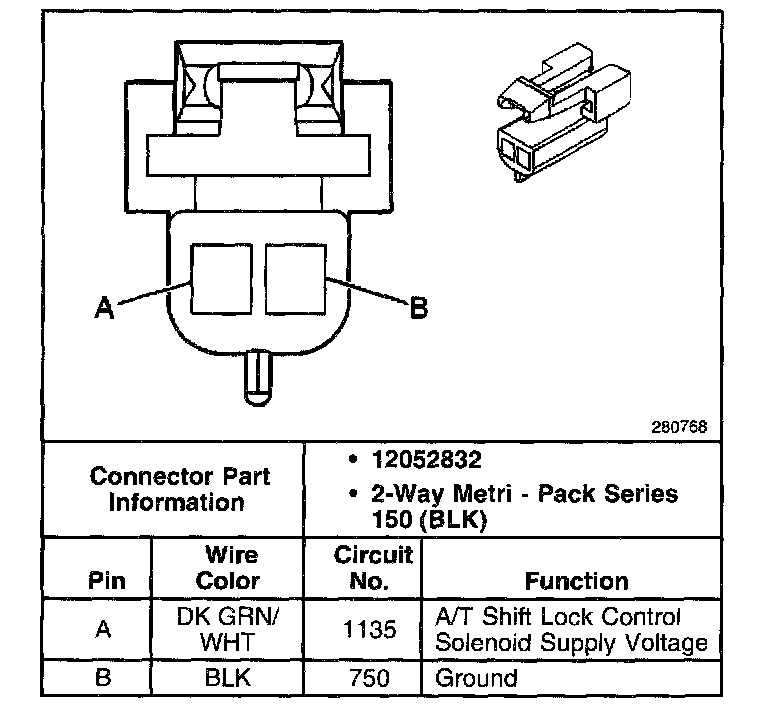

A/T Shift Lock Control Solenoid Connector
