Home >> GMC >> 2001 >> Safari Van 2WD V6-4.3L VIN W >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Door Actuator / Motor, HVAC

Air Door Actuator / Motor, HVAC

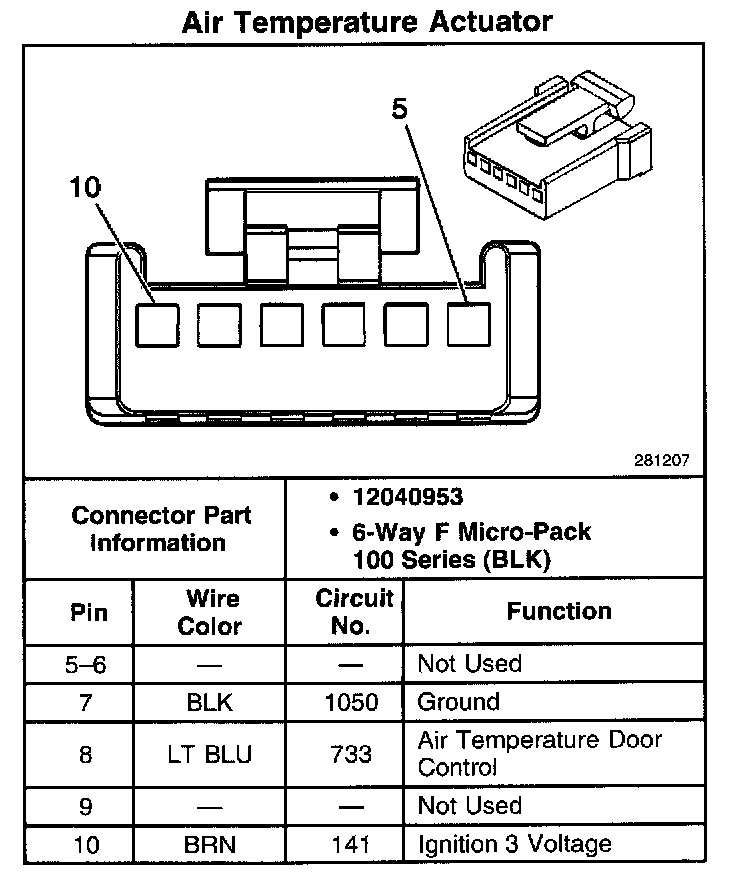

Air Temperature Actuator:
