Diagnostic System Check - Cruise Control

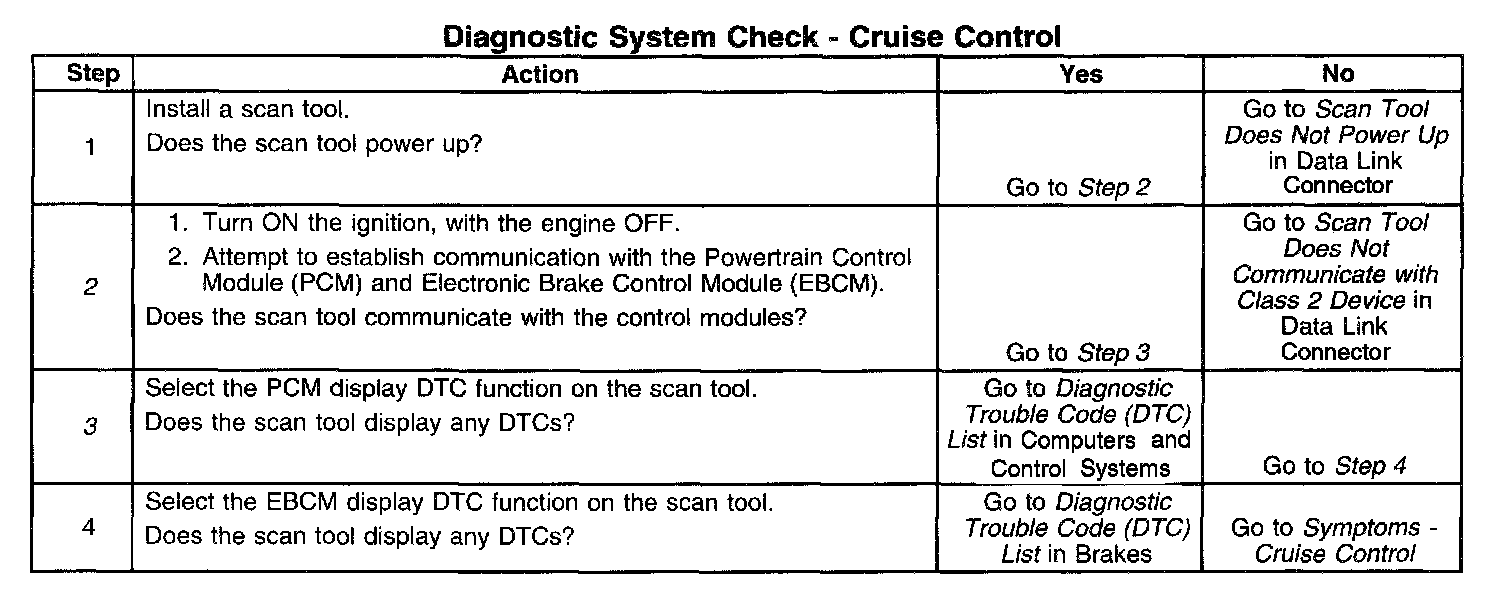

TEST DESCRIPTIONSteps 1-4:
The numbers below refer to the step numbers on the diagnostic table.
2. Lack of communication may be due to a partial malfunction of the class 2 serial data circuit or due to a total malfunction of the class 2 serial data circuit. The specified procedure will determine the particular condition.
3. The symptom list in Symptoms will determine the correct diagnostic procedure to use.
