Park Brake Hardware Inspection

Park Brake Hardware Inspection

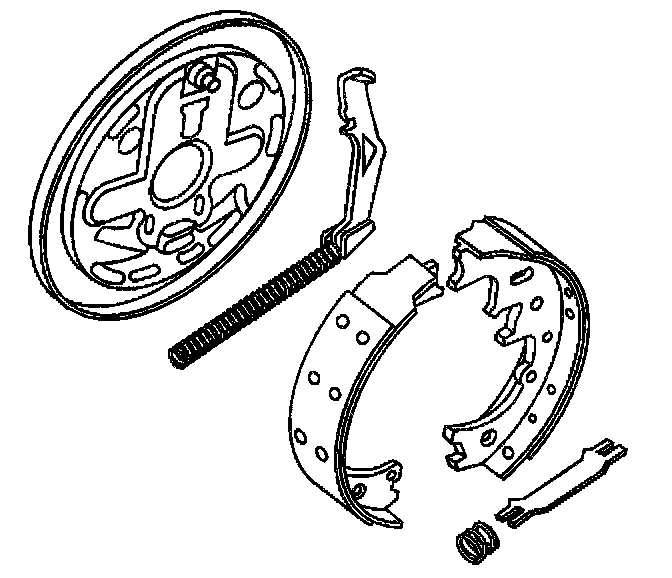

1. Visually inspect the park brake hardware for the following:
^ Excessive corrosion
^ Excessive stretching
^ Broken components
^ Bent components
^ Twisting or binding
^ Missing components
2. If any of the conditions listed were found, the park brake hardware requires replacement.
