Brake Drum Replacement

Brake Drum Replacement

Removal Procedure





1. Raise the vehicle and support the vehicle with suitable safety stands. Refer to Vehicle Lifting.
2. Remove the tire and the wheel from the vehicle.
3. Mark the relationship of the rear brake drum to the axle for reference.
4. Remove the rear brake drum retainers if present.

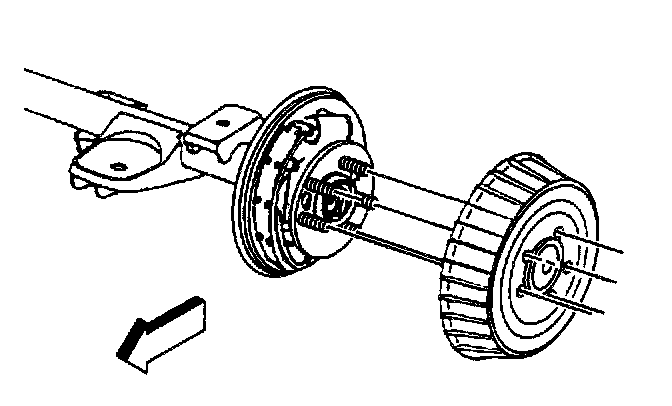

5. Remove the rear brake drum from the vehicle.

Installation Procedure





1. Locate the relationship mark and install the brake drum to the axle.
2. Install the tire and the wheel.
3. Adjust the rear brakes.
4. Remove the safety stands. Lower the vehicle.
