Front Side Door Upper Auxiliary Sealing Strip Replacement




Front Side Door Upper Auxiliary Sealing Strip Replacement

Removal Procedure

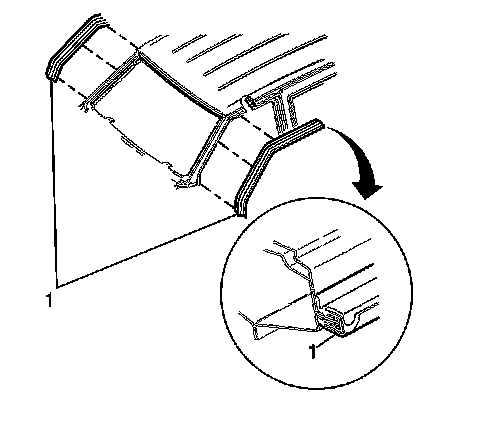

1. Pull the molding (1) from the molding flange.
2. Remove the molding (1).

Installation Procedure




1. Install the molding (1).
2. Push the molding (1) onto the flange. Start at the pre-formed corners. Work toward the straight flanges.
