Air Dam: Service and Repair

Air Intake Baffle Replacement - Radiator

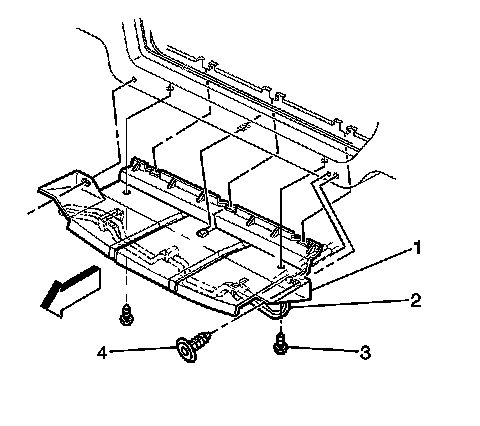

Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair) in General Information.
2. Unhook the power steering cooler lines (2) from the air baffle.
3. Remove the push-in retainers(4) on the right and left sides of the air baffle.
4. Remove the screws (3) that attaches the air baffle to the radiator support.
5. Pull the air baffle rearward in order to release the air baffle from the radiator support.




6. Remove the air baffle (1).

Installation Procedure

1. Position the air baffle (1) into the radiator support.




2. Align the tabs of the air baffle to the radiator support before installing the screws.

Notice: Refer to Fastener Notice in Cautions and Notices.

3.
Install the screws (3) that attach the air baffle to the radiator support.

Tighten the screws that attaches the air baffle to the radiator support to 2 Nm (18 lb.in.).

4. Remove the push clips (4) on the right and left sides of the air baffle.
5. Hook the power steering cooler lines (2) to the air baffle.
6. Lower the vehicle.
