GMC
>>
2001
>>
Safari Van 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Body and Frame
>>
Sensors and Switches - Body and Frame
>>
Power Door Lock Switch
>>
Diagrams
>>
Front Passenger Connector
Front Passenger Connector

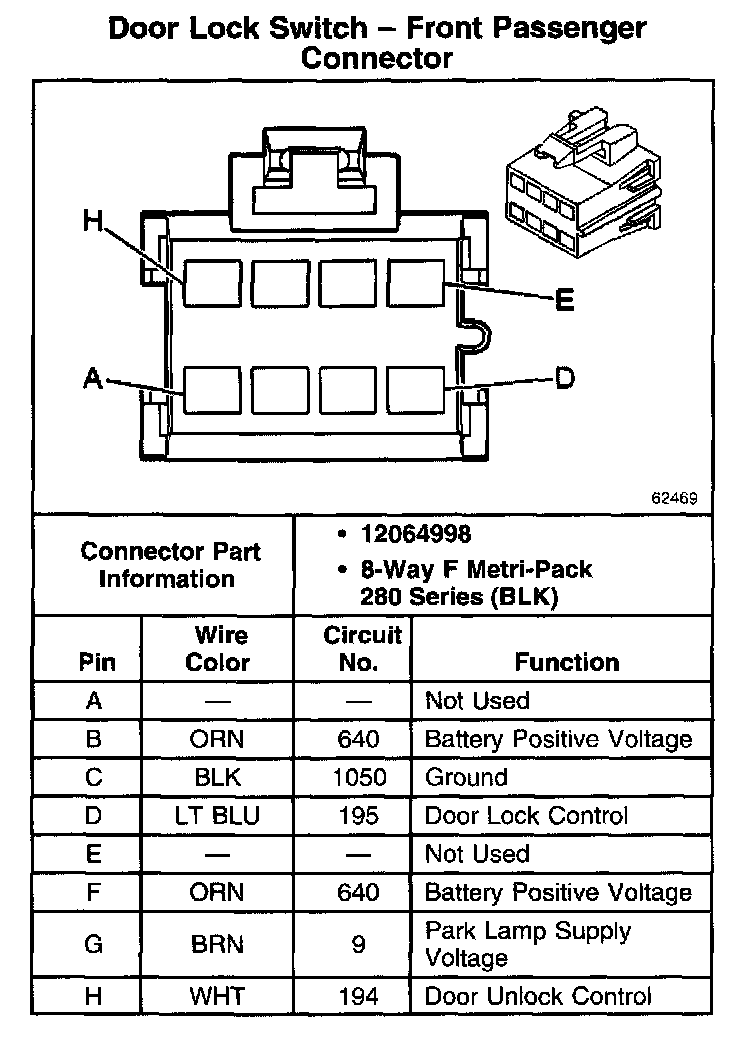

Door Lock Switch - Front Passenger Connector:
