Driver or Passenger Seat Recliner Handle Replacement

Driver or Passenger Seat Recliner Handle Replacement

Removal Procedure

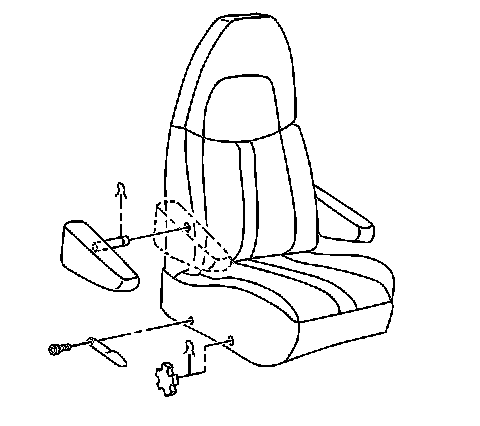

1. Remove the screw that retains the seat back recliner lever to the seat back recliner.
2. Remove the seat back recliner lever from the seat back recliner.

Installation Procedure




1. Install the seat back recliner lever to the seat back recliner.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the screw that retains the seat back recliner lever.

Tighten the screw that retain the seat back recliner lever to 2 Nm (18 lb.in.).
