Seat Cushion Frame Replacement

Seat Cushion Frame Replacement

Removal Procedure

1. Remove the bucket seat from the vehicle. Refer to Bucket Seat Replacement (Bucket Seat Replacement).
2. Remove the seat cushion cover and pad. Refer to Front Seat Cushion Cover Replacement (YC5 and YC6) (Front Seat Cushion Cover Replacement (YC5 and YC6))Front Seat Cushion Cover Replacement (YC7) (Front Seat Cushion Cover Replacement (YC7)).
3. Remove Lumbar support cable. Refer to Lumbar Support Cable Replacement (Lumbar Support Cable Replacement).

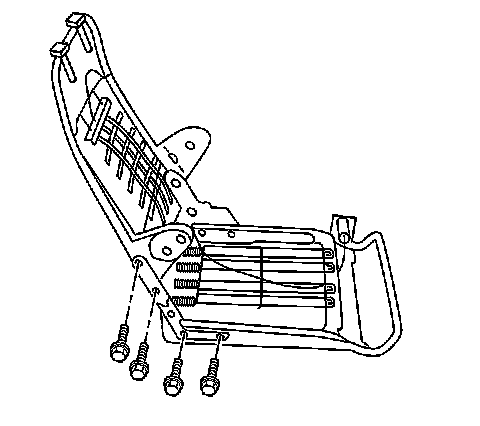

4. Remove the seat back hinge bolts from the right side of the seat frame.




5. Remove the seat back hinge bolts from the left side of the seat frame.
6. Remove the seat cushion frame from the seat back frame.

Installation Procedure

1. Install the seat cushion frame to the seat back frame.





Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the seat back hinge bolts to the left side of the seat frame.

Tighten the seat back hinge bolts to the left side of the seat frame to 30 Nm (22 lb.ft.).




3. Install the bolts to the right side of the seat frame.

Tighten the seat back hinge bolts to the right side of the seat frame to 30 Nm (22 lb.ft.).

4. Install the lumbar support cable. Refer to Lumbar Support Cable Replacement (Lumbar Support Cable Replacement).
5. Install the seat cushion cover and pad. Refer to Front Seat Cushion Cover Replacement (YC5 and YC6) (Front Seat Cushion Cover Replacement (YC5 and YC6))Front Seat Cushion Cover Replacement (YC7) (Front Seat Cushion Cover Replacement (YC7)).
6. Install the bucket seat in the vehicle. Refer to Bucket Seat Replacement (Bucket Seat Replacement).
