Outside Rearview Mirror Replacement

Outside Rearview Mirror Replacement

Removal Procedure

1. Remove the front door window belt filler.
2. Remove the sound insulator patch.
3. Disconnect the electrical connector, if equipped.

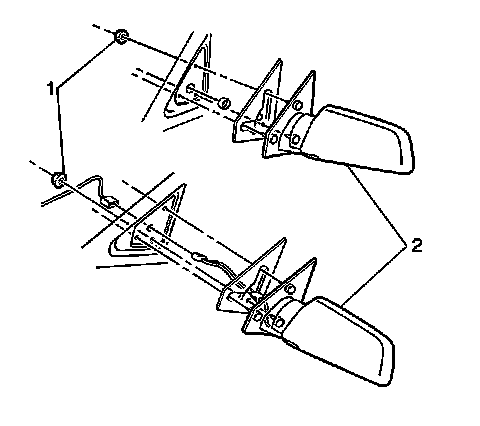

4. Remove the nuts(1) from the mirror.
5. Remove the mirror(2) from the door.

Installation Procedure




1. Install the mirror(2) to the door.

Notice: Refer to Fastener Notice in Caution and Notices.

2. Install the nuts (1) to the mirror.

Tighten the nuts (1) to the mirror to 10 Nm (88 lb.in.).

3. Connect the electrical connector, if equipped.
4. Install the sound insulator patch.
5. Install the front door window belt filler.
