Door Lock Actuators (E54)

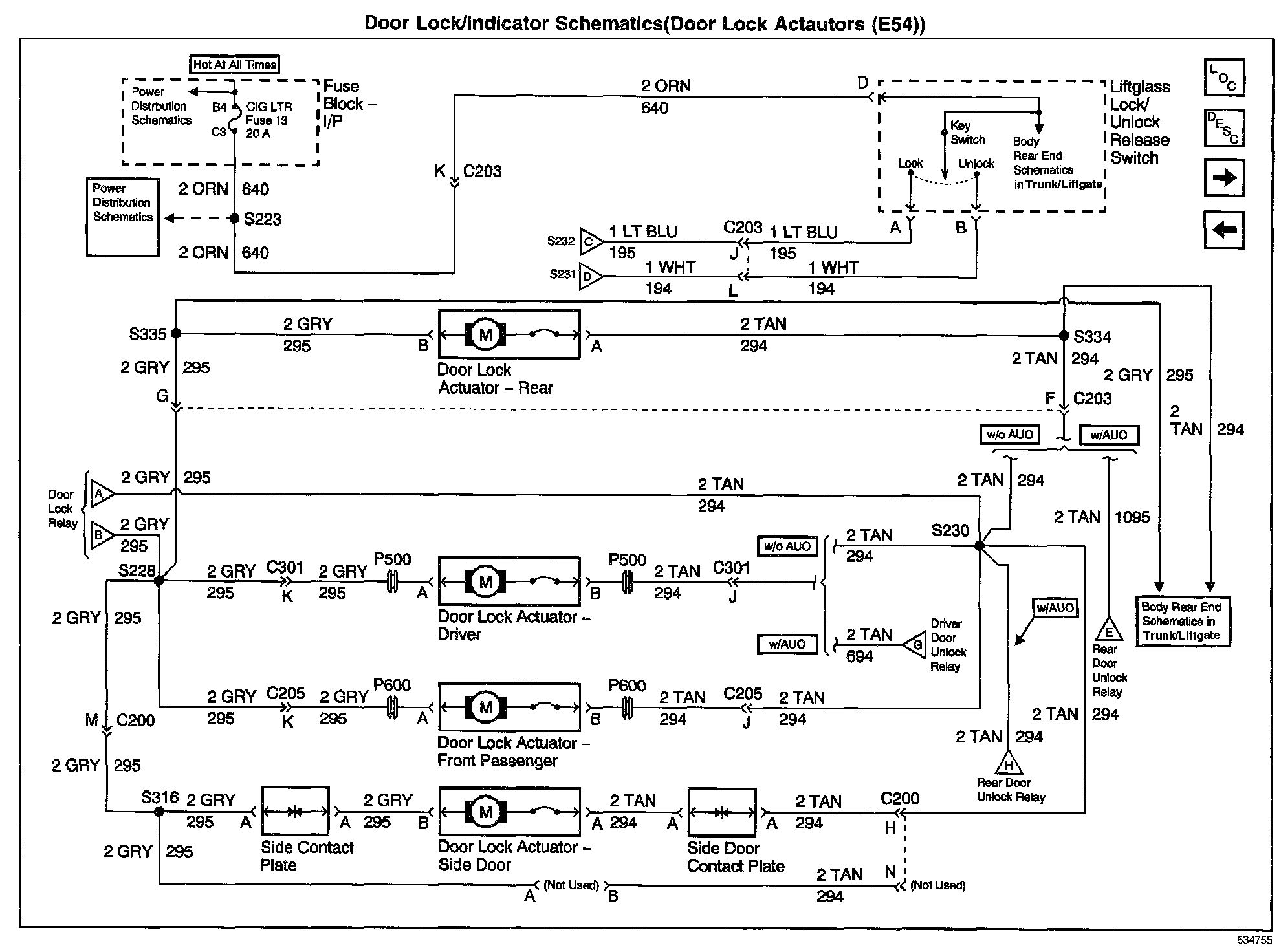

Door Lock/Indicator Schematics: Door Lock Actautors (E54):

For a description of the RPO Code(s) shown in this article/images refer to the RPO Code List found at Vehicle/Application ID RPO Codes
