Lock Replacement - Front Door

REMOVAL PROCEDURE




1. Remove the trim panel.
2. Use a sharp bladed tool in order to separate the water deflector at the perforations. Refer to Water Deflector Replacement - Front Door.

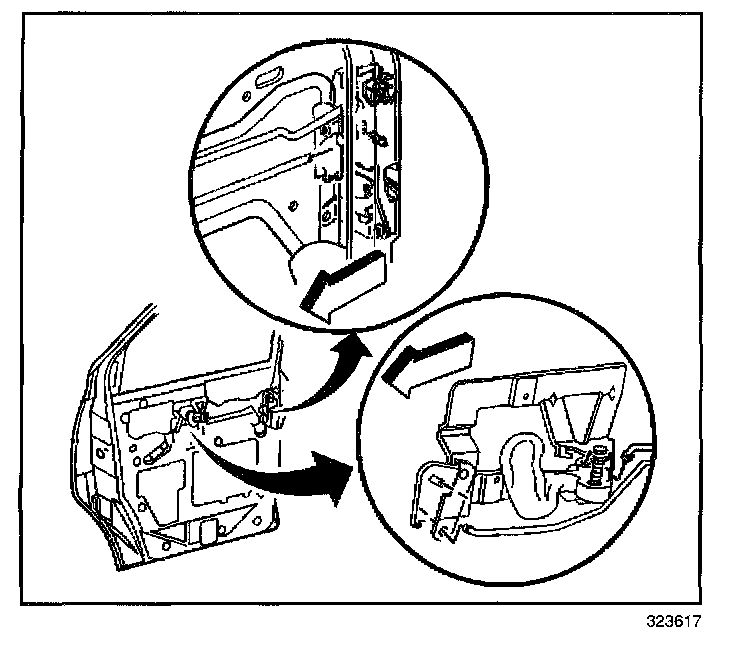

3. Remove the lock rods from the front door lock.

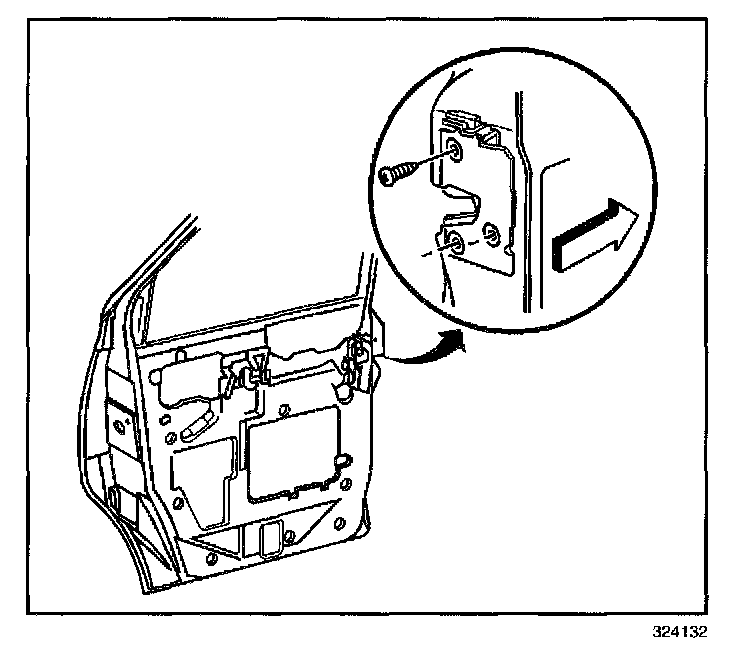

4. Remove the front door lock screws.




5. Remove the front door lock from the door.

INSTALLATION PROCEDURE




1. Install the lock to the door.

NOTE: Refer to Fastener Notice in Service Precautions.




2. Install the lock screws.

Tighten
Tighten the lock screws to 7 N.m (62 lb.in.).

IMPORTANT: Install new plastic retainer clips whenever the lock rods are removed.

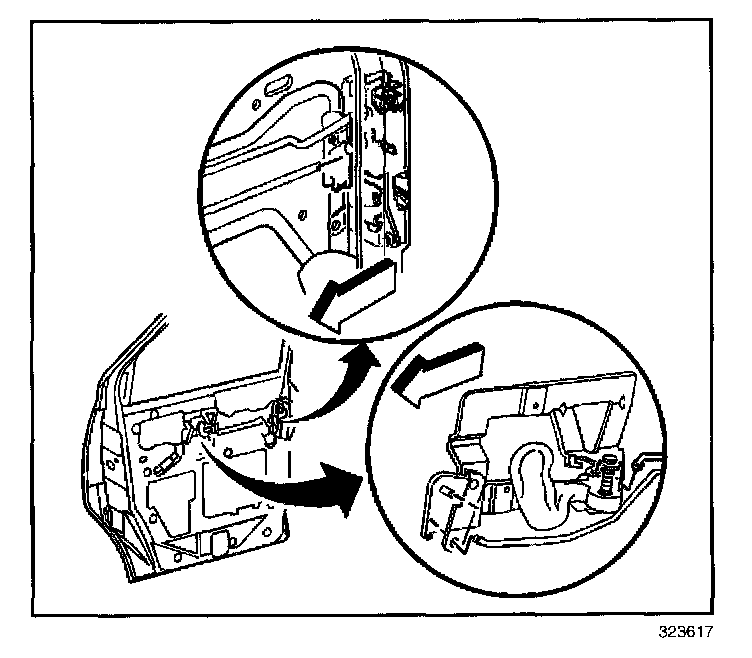

3. Install the lock rods to the front door lock.
4. Install the water deflector.
5. Install the trim panel.
