Third Pillar Trim Replacement - Left Side

Third Pillar Trim Replacement - Left Side

Tools Required

J 38778 Door Pad Trim and Garnish Clip Remover

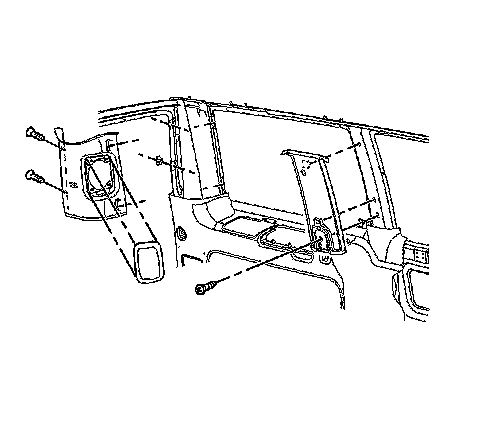

Removal Procedure

1. Remove the seat belt upper mount. Refer to Driver or Passenger Seat Shoulder Belt Guide Adjuster Replacement in Seat Belts.
2. Remove the retaining screw.




3. Use the J 38778 in order to release the fasteners that retain the panel to the vehicle.

Installation Procedure




1. Install the panel to the vehicle:

1. Align the retaining clips with the holes in the body.
2. Press the panel in order to seat the fasteners into place.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the retaining screw.

Tighten the retaining screw to 2 Nm (18 lb.in.).

3. Install the seat belt upper mount. Refer to Driver or Passenger Seat Shoulder Belt Guide Adjuster Replacement in Seat Belts.
