Rear Upper Garnish Molding Replacement

Rear Upper Garnish Molding Replacement

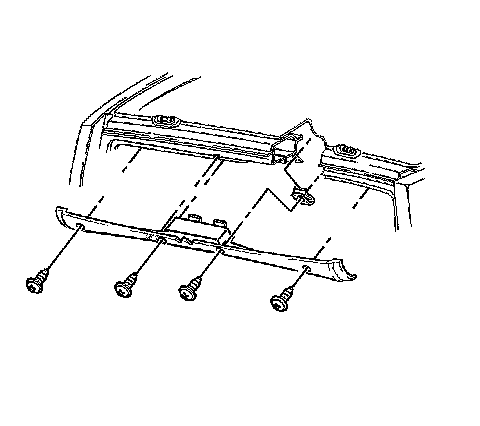

Removal Procedure

1. Remove the screws that retain the door frame garnish molding to the vehicle.




2. Remove the door frame garnish molding.
3. Disconnect the electrical connector.

Installation Procedure

1. Connect the electrical connector.




2. Install the molding to the roof.

Notice: Refer to Fastener Notice in Cautions and Notices.

3. Install the roof retaining screws.

Tighten the roof retaining screws to 2 Nm (18 lb.in.).
