Cowl Side Trim Panel Replacement

Cowl Side Trim Panel Replacement

Removal Procedure

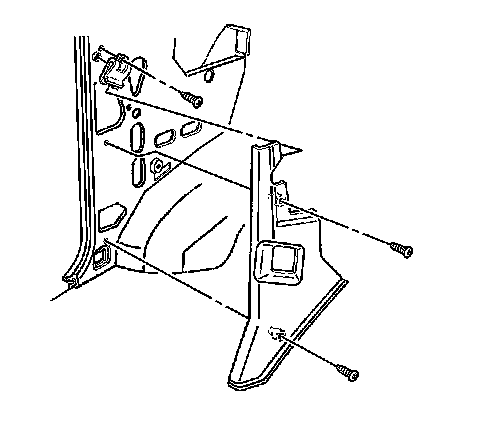

1. Remove the screws that retain the panel to the cowl side.
2. Remove the trim panel from the vehicle.

Installation Procedure

1. Install the trim panel to the vehicle.





Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the screws that retain the trim panel to the cowl side.

Tighten the screws that retain the trim panel to the cowl side to 2 Nm (18 lb.in.).
