Interior Moulding / Trim: Service and Repair

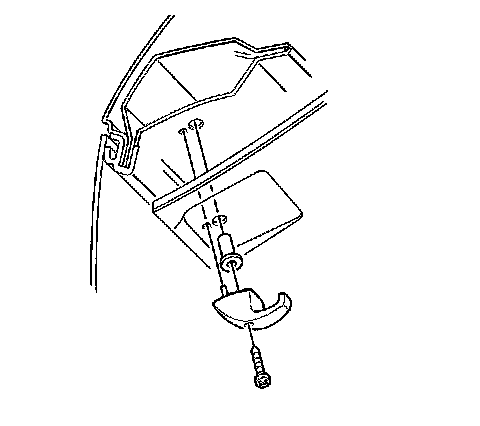

Coat Hook Replacement

Removal Procedure




1. Remove the screw that retains the coat hook to the vehicle.
2. Remove the coat hook from the vehicle.

Installation Procedure

1. Install the coat hook to the vehicle.





Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the screw through the coat hook and the panel.

Tighten the screw to the coat hook to 2 Nm (18 lb.in.).
