Front Side Door Step Mat Replacement




Front Side Door Step Mat Replacement

Removal Procedure

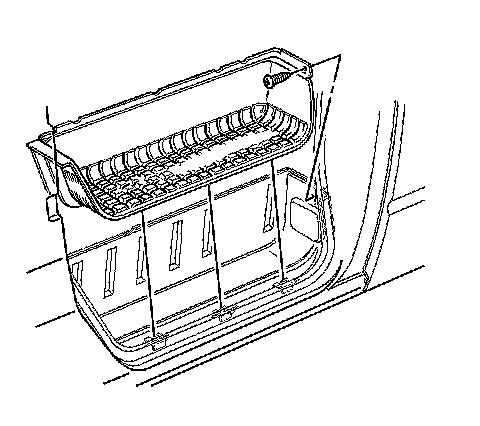

1. Remove the screws from the step plate cover.




2. Remove the step panel cover.

Installation Procedure




1. Install the step panel cover.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the step panel cover screws.

Tighten the step panel cover screws to 2 Nm (18 lb.in.).
