Grille Replacement

Grille Replacement

Removal Procedure

1. Remove the park/turn signal lamp. Refer to Parking and Turn Signal Lamp Replacement .

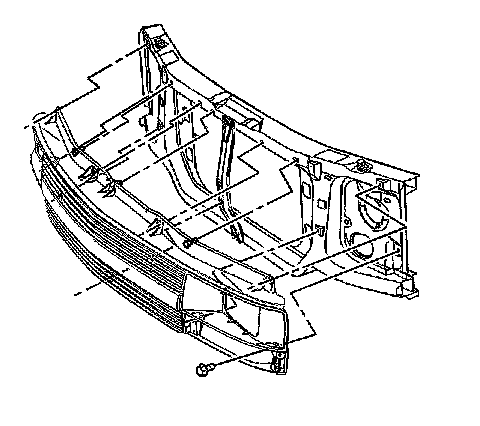

2. Remove the screws from the grille to radiator support.
3. Remove the screw from the signal housing.




4. Remove the grille from the vehicle.

Installation Procedure




1. Install the grille to the vehicle.

Notice: Refer to Fastener Notice in Cautions and Notices.

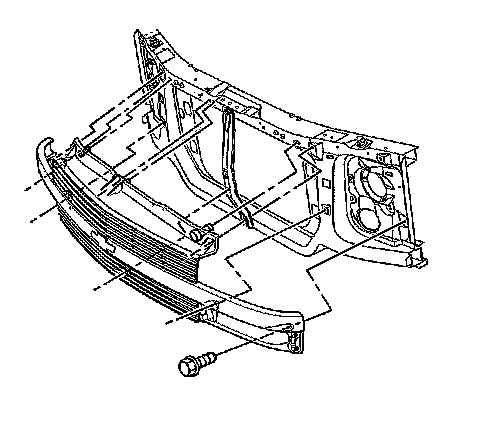

2. Install the screws to grille to radiator support.

Tighten the screws to the grille to radiator support to 3 Nm (27 lb.in.).

3. Install the park/turn signal lamp. Refer to Parking and Turn Signal Lamp Replacement in Lighting Systems.
