Rear Fender Liner: Service and Repair

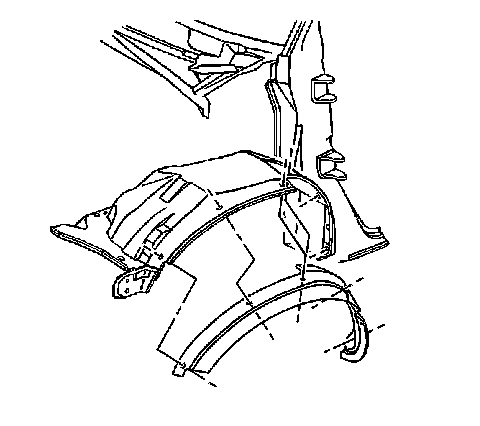

Wheelhouse Extension Replacement

Tools Required

J 38778 Door Trim Pad and Garnish Clip Remover

Removal Procedure




1. Use J 38778 in order to remove the retainers from the fender and the extension and from the wheelhouse.
2. Remove the extension from the wheelhouse.

Installation Procedure

1. Install the extension to the wheelhouse.




2. Install the extension push pins to the wheelhouse.
