Front Fender Liner: Service and Repair

Wheelhouse Splash Shield Replacement

Tools Required

J 38778 Door Trim Pad and Garnish Clip Remover

Removal Procedure

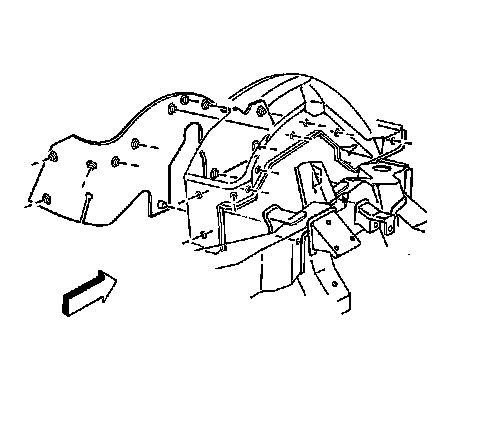

1. Use J 38778 to remove the retainers from the wheelhouse and the splash shield.
2. Remove the wheelhouse splash shield from the wheelhouse.

Installation Procedure

1. Install the wheelhouse splash shield to the wheelhouse.




2. Push the retainers into the wheelhouse holes in order to retain the splash shield to the wheelhouse.
