Cladding Replacement Rocker Panel - Rear

Body Side Lower Front Molding Replacement

Removal Procedure

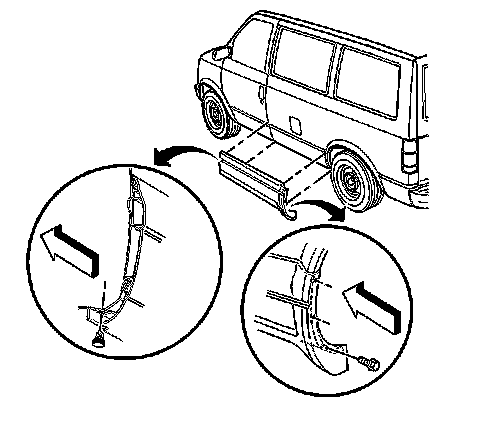

1. Remove the wheel opening screws. If the vehicle is equipped with assist steps, the cladding will be shorter across the bottom.




2. Remove the cladding from the rear quarter panel. Refer toAdhesive Retained Cladding Replacement ().

Installation Procedure




1. Install the cladding to the rear quarter panel. Refer to Adhesive Retained Cladding Replacement ().

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the wheel opening screws.

Tighten the wheel opening screws to 2 Nm (18 lb.in.).
