Body Side Lower Rear Moulding Replacement

Body Side Lower Rear Molding Replacement

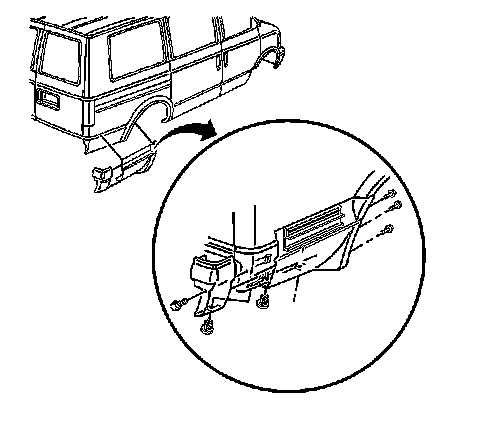

Removal Procedure




1. Remove the rear corner extension molding retainers.
2. Remove the rear corner extension molding.
3. Remove the cladding screws.
4. Remove the cladding retainers.
5. Remove the cladding from the body. Refer to Adhesive Retained Cladding Replacement ().

Installation Procedure

1. Install the cladding to the body. Refer to Adhesive Retained Cladding Replacement ().

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the cladding screws.

Tighten the cladding screws to 2 Nm (18 lb.in.).

3. Install the cladding retainers.
4. Install the rear corner extension molding.




5. Install the rear corner extension molding retainers.
