Trunk / Liftgate Striker: Service and Repair

Liftgate Lock Striker Replacement

Removal Procedure

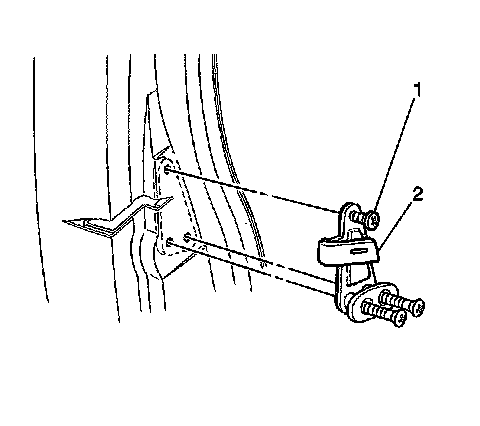

1. Remove the screws (1).
2. Remove the striker assembly (2).

Installation Procedure





Notice: Refer to Fastener Notice in Cautions and Notices.

Install the liftgate striker (2) with the screws (1).

Tighten the liftgate striker screws to 10 Nm (88 lb.in.).
