Liftgate Strut Ball Stud Replacement

Liftgate Strut Ball Stud Replacement

Removal Procedure

1. Open and support the liftgate.
2. Remove the strut. Refer to Liftgate Strut Replacement (Liftgate Strut Replacement).

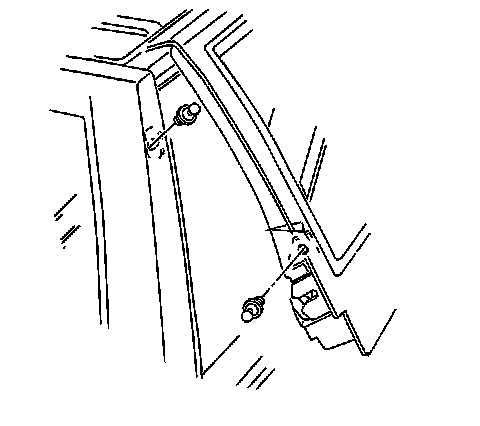

3. Remove the strut ball from the lid or body by turning counterclockwise.

Installation Procedure





Notice: Refer to Fastener Notice in Cautions and Notices.

1. Install the strut ball to lid or body by turning clockwise into the weldnut.

Tighten the strut ball to 25 Nm (18 lb.ft.).

2. Install the strut. Refer to Liftgate Strut Replacement (Liftgate Strut Replacement).
3. Install the support. Close liftgate.
