Trunk / Liftgate Lock Cylinder: Service and Repair

Liftgate Lock Cylinder Replacement

Removal Procedure

1. Remove the liftgate garnish molding. Refer to Liftgate Garnish Molding Replacement ().
2. Disconnect the electrical connector.
3. Remove the rear wiper motor from the liftgate.

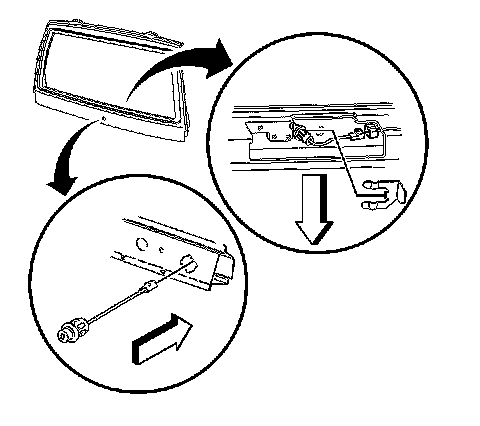

4. Remove the lock cylinder retainer.
5. Remove the lock cylinder from the liftgate.

Installation Procedure




1. Install the lock cylinder to the liftgate.
2. Install the lock cylinder retainer.
3. Install the rear wiper motor to the liftgate.
4. Connect the electrical connector.
5. Install the liftgate garnish molding. Refer to Liftgate Garnish Molding Replacement ().
