Trunk / Liftgate Handle: Service and Repair

Liftgate Outside Handle Replacement

Removal Procedure

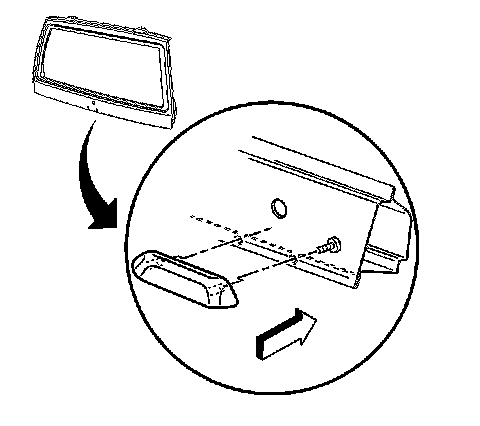

1. Remove the screws that retain the liftgate handle.
2. Remove the liftgate handle.

Installation Procedure




1. Install the liftgate handle.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the screws that retain the liftgate handle.

Tighten the screws that retain the liftgate handle to 4 Nm (35 lb.in.).
