Hood Weatherstrip: Service and Repair

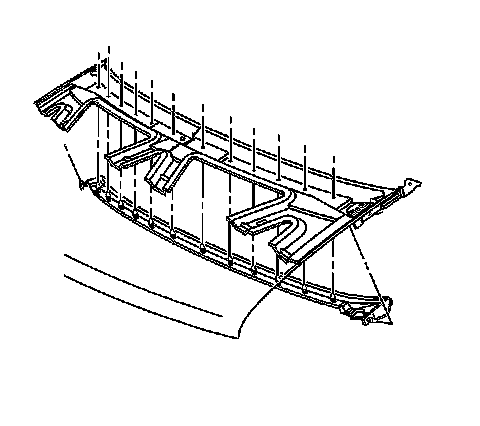

Hood Rear Seal Replacement

Tools Required

J 38778 Door Trim Pad and Garnish Clip Remover

Removal Procedure




1. Remove the rear hood seal retainers by using J 38778 .
2. Remove the rear hood seal from the hood.

Installation Procedure

1. Install the rear hood seal to the hood.




2. Push the retainers into the hood in order to retain the rear hood seal.
