Hood Pop-Up Spring Replacement




Hood Pop-Up Spring Replacement

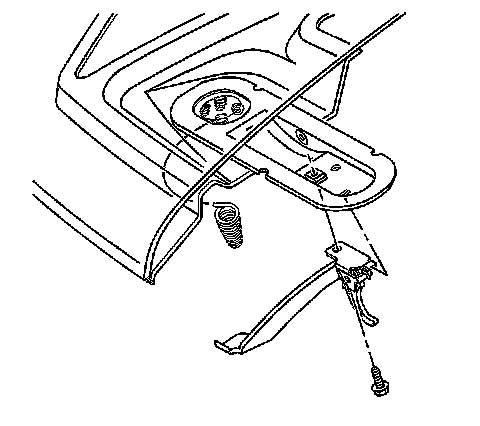

Removal Procedure





Using a suitable flat-bladed tool, push on the hood mounted end of the spring outward to remove the spring from the hood.

Installation Procedure





Insert the spring into the hood retainers in order to install the spring to the vehicle.
