Hood Insulator / Pad: Service and Repair

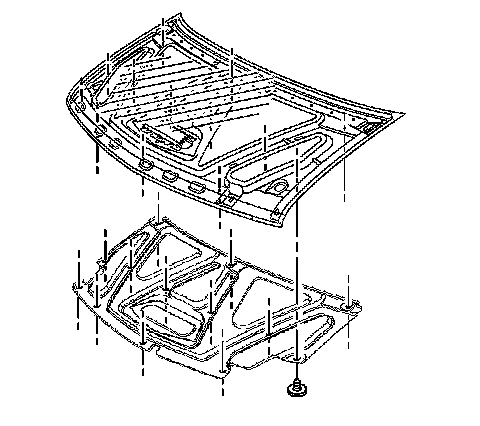

Hood Insulator Replacement

Tools Required

J 38778 Door Trim Pad and Garnish Clip Remover

Removal Procedure

1. Raise the hood.
2. Remove the hood insulator push-in retainers by using J 38778 .




3. Remove the insulator from the hood.

Installation Procedure




1. Install the hood insulator to the hood.
2. Install the hood insulator retainers into the hood by pushing in the retainers.
