Front Door Adjustment

Door Adjustment

The original door hinges are welded in place and the adjustment of this system is not possible. Adjustment is only possible with service bolt-on hinges.

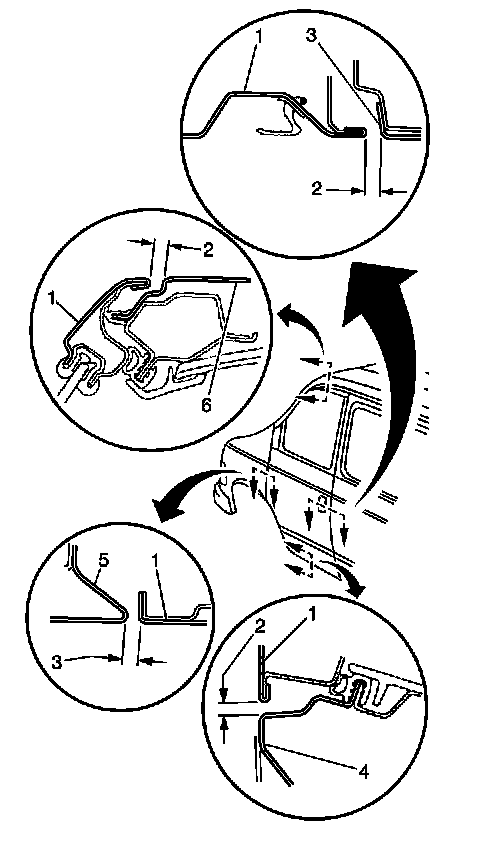

1. Adjust the door in order to obtain a gap of 5.0-1.0mm (0.196-0.039in) between the door (2) and the door frame (1) at the points shown.
2. Ensure that the door surface (1) is flush with the body surface (6) within 1.0mm (0.039in). Enlarge the striker hole if needed.
