Theft Deterrent, A/T, Audible/Brake Warning, Interior LTS

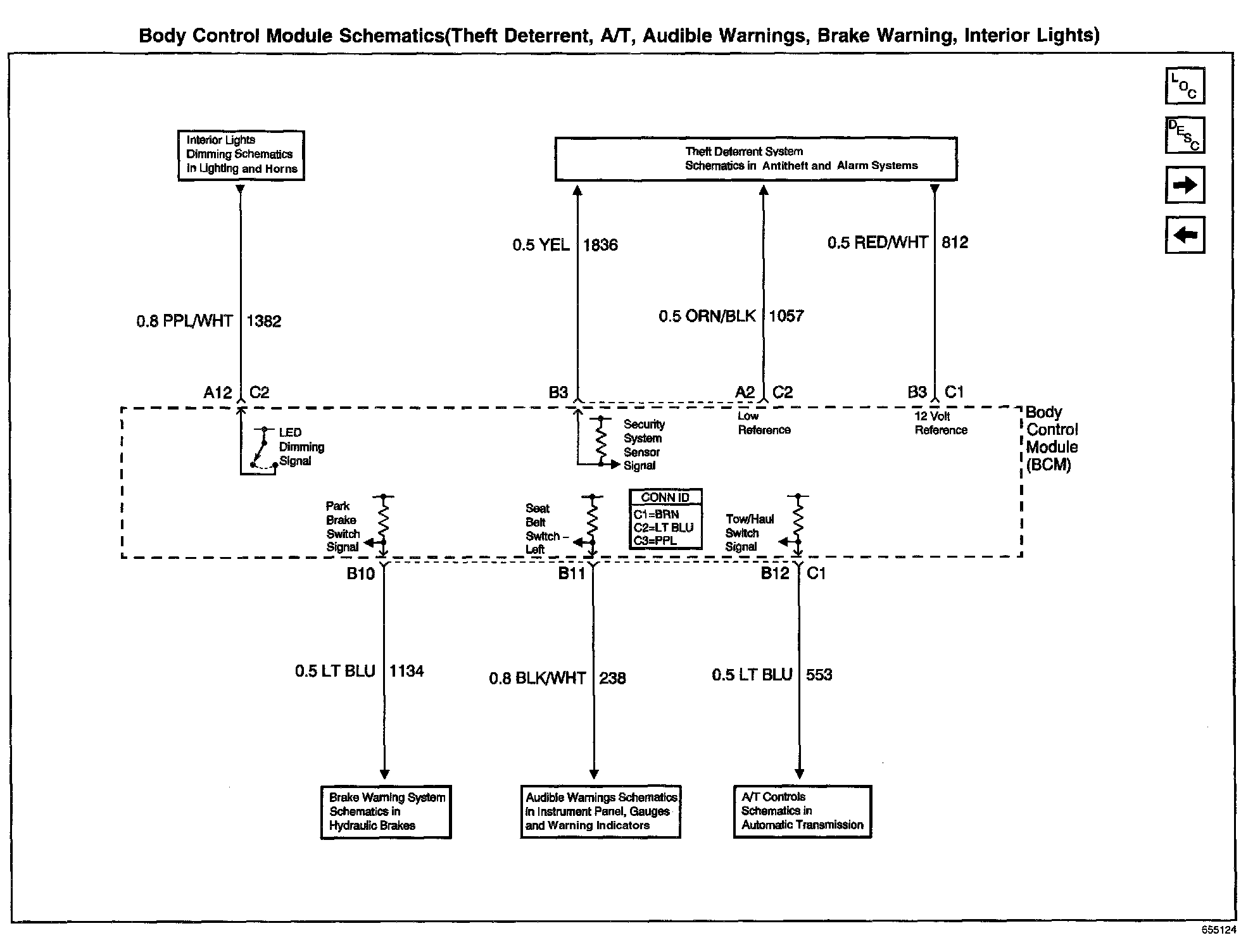

Body Control Module Schematics: Theft Deterrent, A/T, Audible Warnings, Brake Warning, Interior Lights:
