Exterior LTS, Interior LTS,Door Locks, Trunk/Liftgate, Audible Warnings

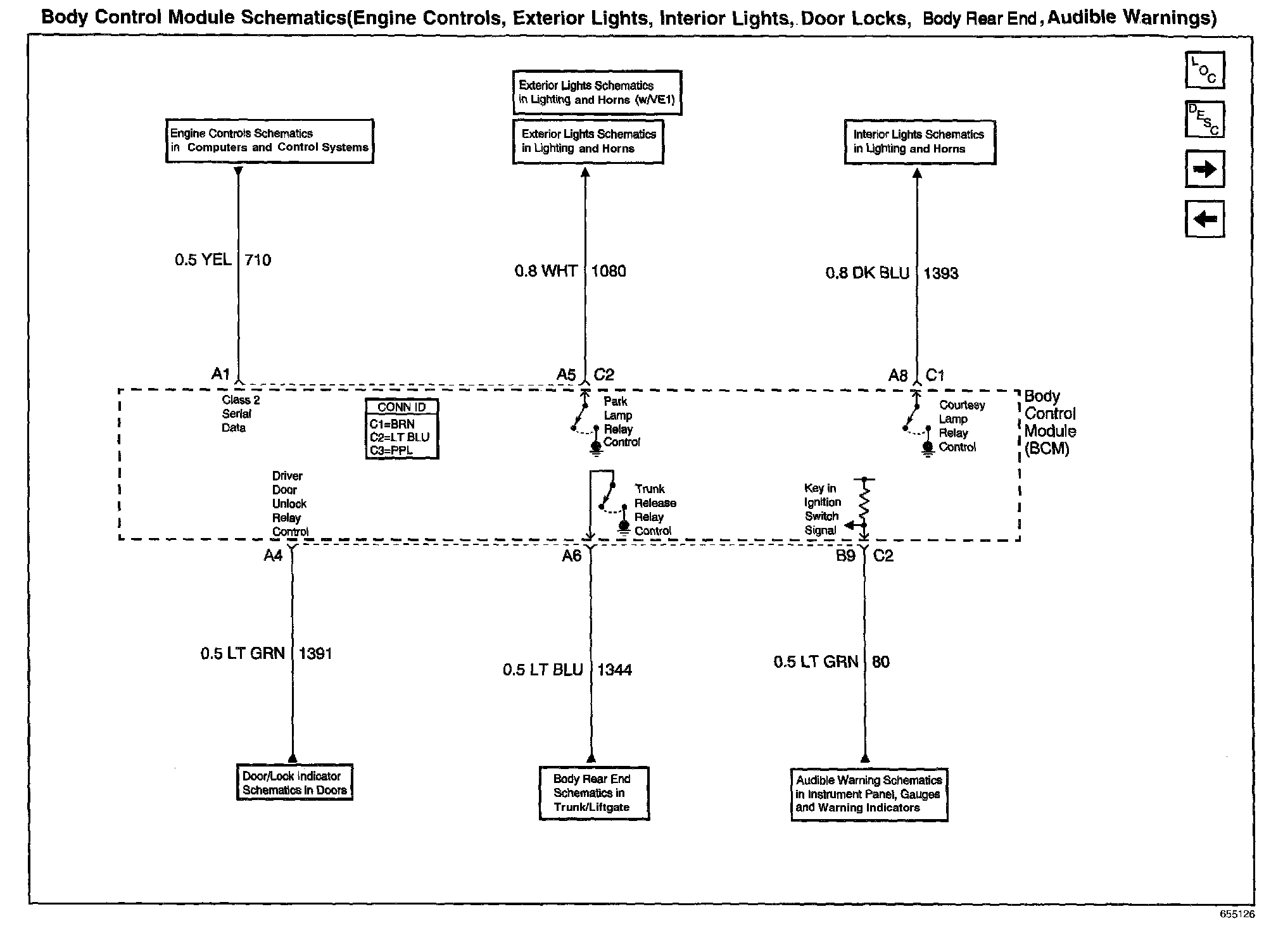

Body Control Module Schematics: Engine Controls, Exterior Lights, Interior Lights, Door Locks, Body Rear End, Audible Warnings:
