Engine Cover Guide Replacement

Engine Cover Guide Replacement

Removal Procedure

1. Remove the engine cover. Refer to Engine Cover Replacement (Engine Cover Replacement).

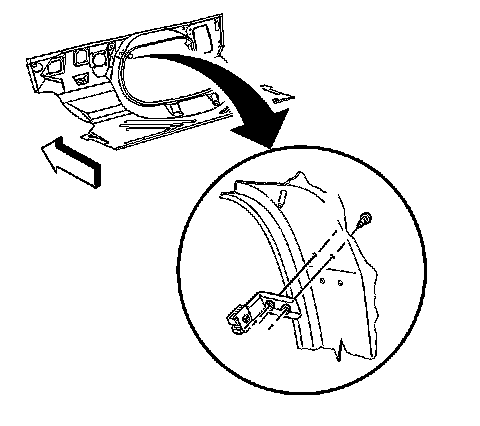

2. Remove the bolts that retain the engine cover guide assembly to the vehicle.
3. Remove the engine cover guide assembly.

Installation Procedure

1. Install the engine cover guide assembly.





Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the bolts that retain the engine cover guide assembly to the vehicle.

Tighten the bolts that retain the engine cover guide to 8.5 Nm (75 lb.in.).

3. Install the engine cover. Refer to Engine Cover Replacement (Engine Cover Replacement).
