Rear Door

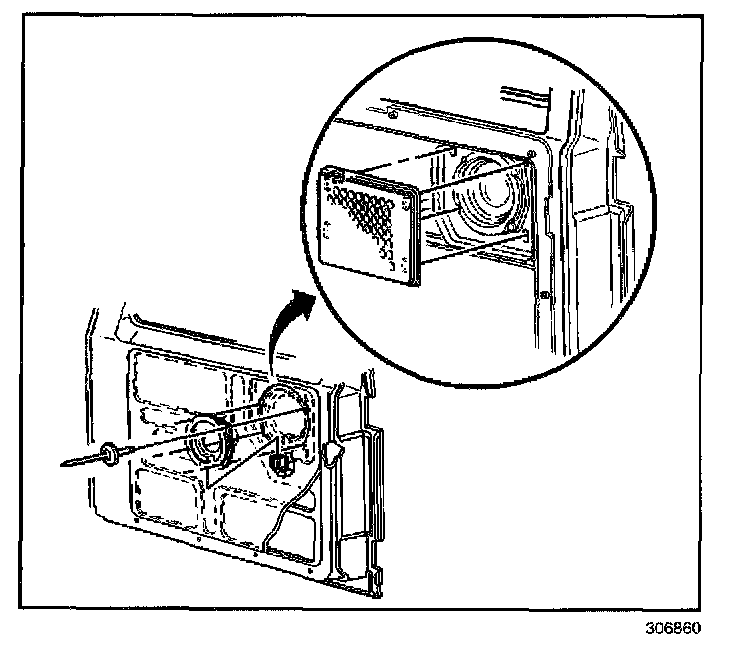

REMOVAL PROCEDURE




1. Remove the door trim panel.
2. Remove the rivets that retain the speaker to the door.
3. Disconnect the electrical connector from the speaker.
4. Remove the speaker from the door.

INSTALLATION PROCEDURE




1. Position the speaker to the door.
2. Connect the electrical connector to the speaker.
3. Install the speaker to the door.
4. Use a rivet gun in order to secure the speaker to the door with new rivets.
5. Install the door trim panel.
