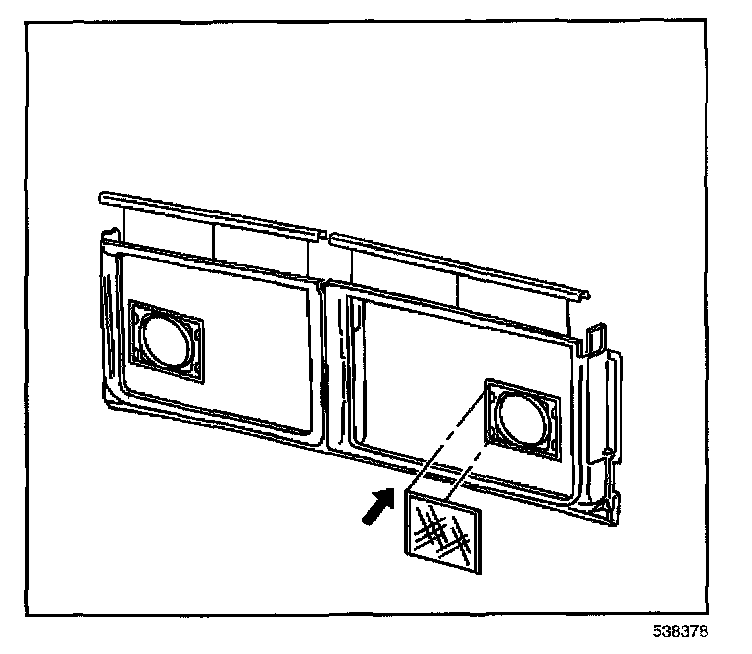

Speaker Grille Replacement - Rear

REMOVAL PROCEDURE




1. Open the rear door(s).
2. Separate the corners of the grille from the trim panel, one at a time, in order to remove the grille.
3. Remove the grille from the door trim panel.

INSTALLATION PROCEDURE




1. Align the grill retaining clips with the slots in the door trim panel.
2. Seat the grille into place.
3. Close the door(s).
