Radio, Stereo, and Compact Disc: Service and Repair

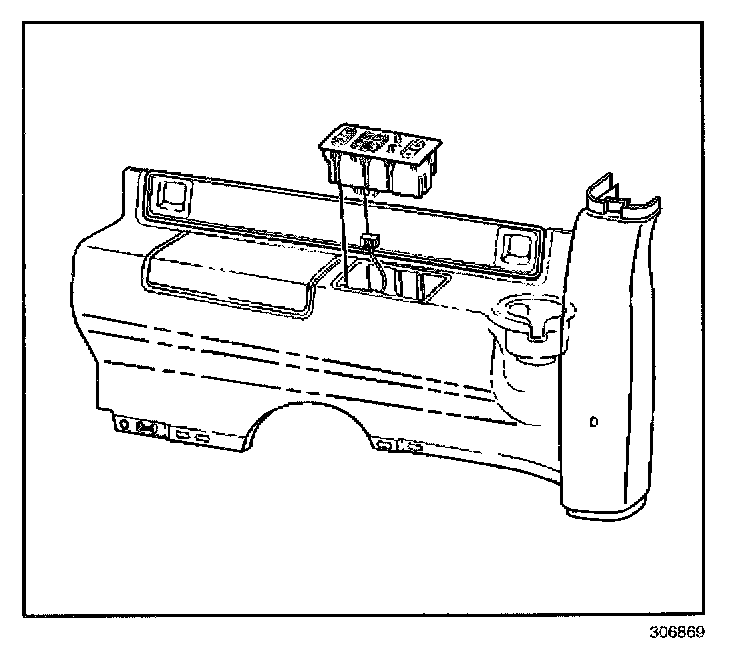

REAR SEAT AUDIO CONTROL REPLACEMENT

REMOVAL PROCEDURE




1. Use a small flat-bladed tool in order to gently press the tabs at the forward and the rearward edges of the audio control.
2. Lift the audio control from the trim panel.
3. Disconnect the electrical connector from the audio control.

INSTALLATION PROCEDURE




1. Connect the electrical connector to the audio control.
2. Install the audio control to the trim panel and press to engage the tabs.
