Keyless Entry System Inoperative

TEST DESCRIPTION

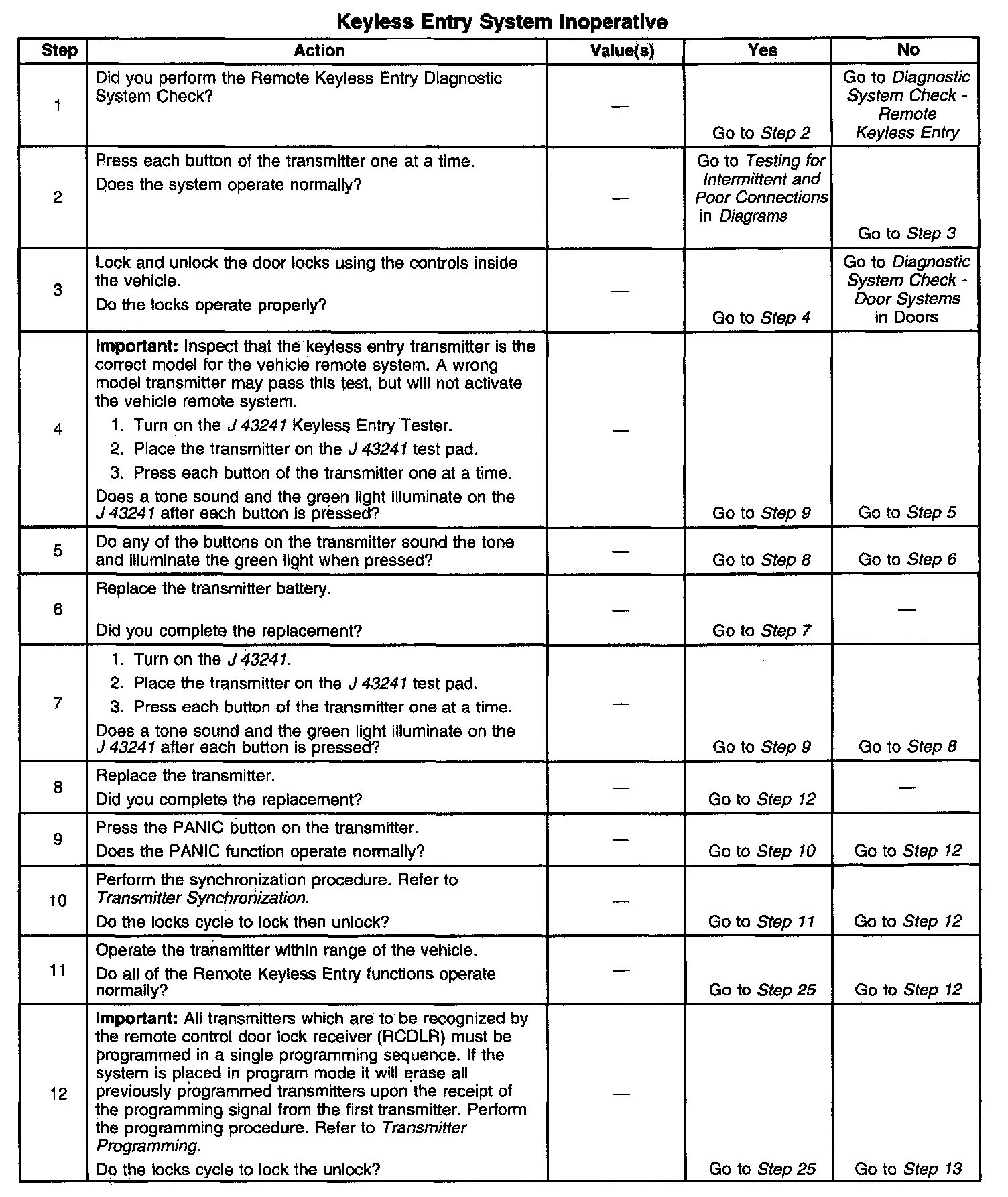

Steps 1-12:

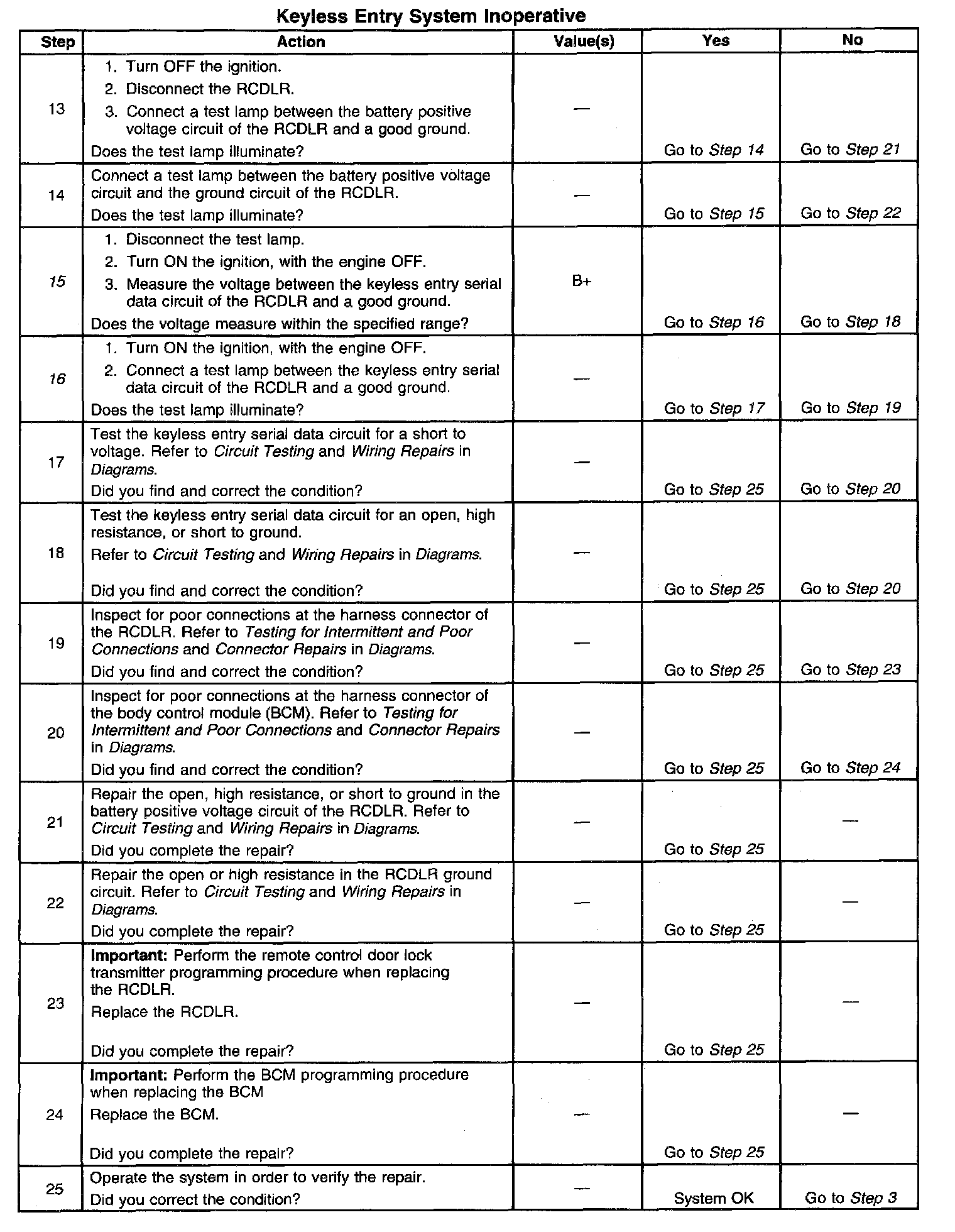

Steps 13-25:

The numbers below refer to the step numbers on the diagnostic table.
15. This step verifies that the keyless entry serial data circuit voltage is B+ as supplied by the BCM.
16. This step tests for a short to voltage in the keyless entry serial data circuit.
