Antenna Mast: Service and Repair

FIXED ANTENNA MAST REPLACEMENT

REMOVAL PROCEDURE

NOTE: Use tape on the tool surface so that you do not damage the paint on the antenna mast.

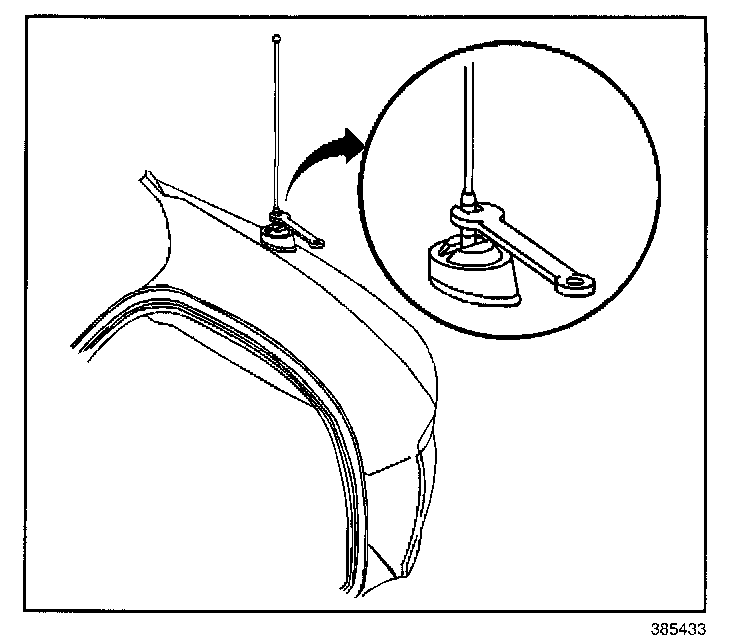

1. Unscrew the antenna mast.

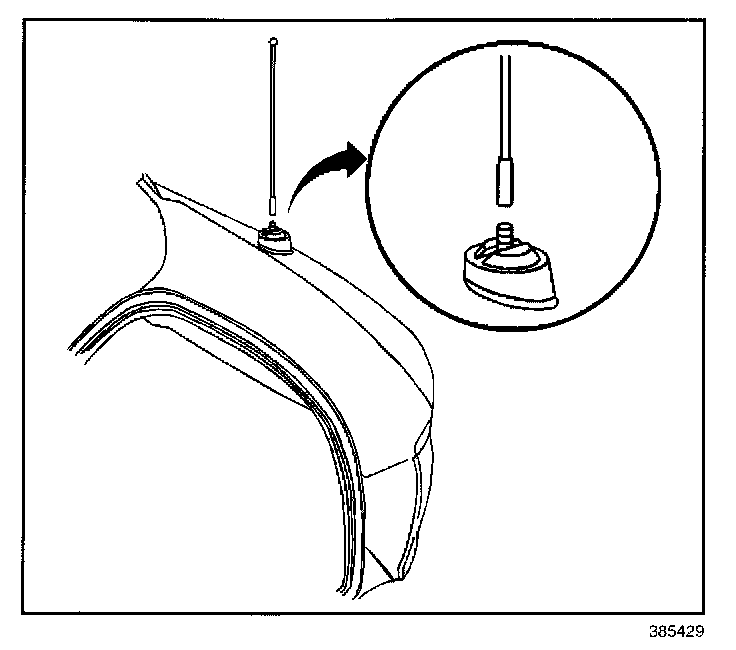

2. Remove the antenna mast from the antenna base.

INSTALLATION PROCEDURE

NOTE: Use tape on the tool surface so that you do not damage the paint on the antenna mast.




1. Install the antenna mast to the antenna base.

NOTE: Refer to Fastener Notice in Service Precautions.




2. Secure the antenna mast to the antenna base.

Tighten
Tighten the antenna mast to 5.5 N.m (49 lb in).
